Product Information

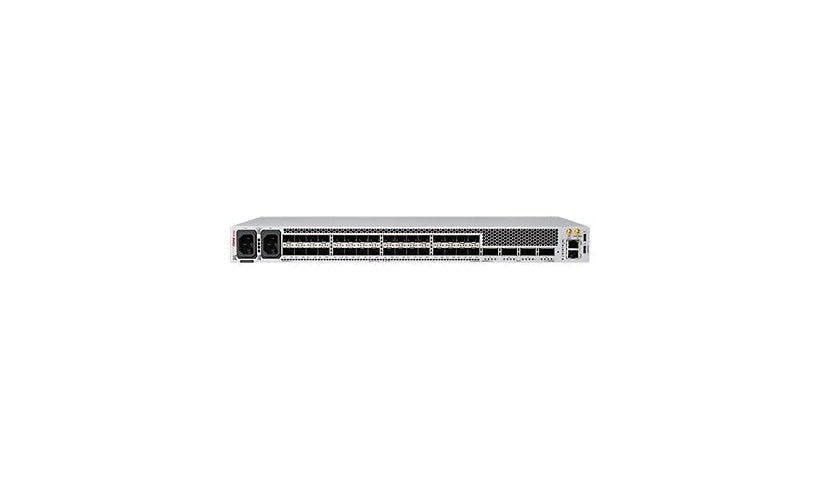

The Ciena 5164 (170-5164-900) is a 1U router for 5G fronthaul, midhaul and backhaul networks, not a network adapter. It has 32 x 1/10/25G SFP28 ports and 4 x 100/200G QSFP-DD ports, runs on 48 V DC power and draws about 290 W. It supports FlexEthernet and Segment Routing network slicing, MPLS, BGP, IS-IS, OSPF and EVPN, with a built in GNSS receiver and an extended temperature range. This listing does not include the transceivers or power supply bundle found on the 170-5164-902.
Key Features
- Router, not a network adapter
- 32 x SFP28 + 4 x QSFP-DD
- 48 V DC power
- Built in GNSS receiver
- MPLS, BGP, EVPN
- 1U, temperature hardened
Product Information
Brand: Ciena
Manufacturer: Ciena
Product Line: Ciena
Model: 5164
Product Type: Router
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, eCPRI, Gigabit Ethernet, XGS-PON
Network Standard: DHCP, DHCPv6, IPv4, IPv6, NTP, SFTP, TCP/IP
Remote Management: CLI, NETCONF, NTP, OAM, SFTP, SNMP 2, YANG
Routing Protocol: BGP, IS-IS, MPLS, OSPF, OSPFv2
Authentication Method: RADIUS, RADSEC, Secure Shell v.2 (SSH2), TACACS+
Encryption: TLS
Data Transfer Rate: 200 GBps
Jumbo Frame Support: 9216 bytes
Key Features: USB port, VPN support
Features: Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Built-in GNSS receiver, Class of Service (CoS), Connectivity Fault Management (CFM), CoS, DHCP client, DHCP relay, DHCPv6 client, DoS attack prevention, Ethernet Virtual Connections (EVC), Ethernet Virtual Private Network (EVPN), EVPN Virtual Private Wire Service (VPWS), Extended temperature range, Hierarchical Virtual Private LAN Service (H-VPLS), IP-routing, Label Distribution Protocol (LDP), LACP support, Layer 2 switching, Layer 2 VPN (L2VPN) support, Layer 3 switching, Link Aggregation Control Protocol (LACP), Link Aggregation Group (LAG), LLDP support, MPLS support, NTP client, Q-in-Q tunneling, Quality of Service (QoS), Secure Zero-touch provisioning (SZTP), Software Defined Networking (SDN), Static label-switched paths (LSPs), Stratum 3E oscillator, Syslog support, Topology Independent Loop-Free Alternate (TI-LFA), Virtual Private LAN Service (VPLS), VLAN support
Connectivity
Interface Provided: 32 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet - SFP28, 4 x 100Gb Ethernet / 200Gb Ethernet - QSFP-DD, Antenna: 1 x, Console: 1 x 24 pin USB-C, Management: 1 x RJ-45, Synchronization: 1 x RJ-45, USB: 1 x 24 pin USB-C
Power
Device Type: Internal power supply
Required Voltage: DC 48 volt
Power Consumption Operational: 290 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.3 inch
Depth: 10.2 inch
Weight: 11.46 lbs
Certifications and Listing
Compliant Standards #2: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.3-2018, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3z, ITU-T G.703, ITU-T G.8262, ITU-T G.8264, ITU-T G.8273.2, ITU-T G.8275.1, ITU-T G.8275.2, ITU-T Y.1564, ITU-T Y.1731, MEF 3.0
Compliant Standards: ANSI/UL 60950-1 Second Edition, CAN/CSA 62368-1, CAN/CSA C22.2 No. 60950-1, CISPR 24 Class A, CISPR 32 Class A, CISPR 35 Class A, EN 301 489-19, EN 303 413, EN 55032, EN 55035, EN 60950-1, EN 62368-1:2014/A11:2017, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, ETSI EN 300 019-3-3, ETSI EN 300 119-3, ETSI EN 300 132-2, ETSI EN 300 132-3, ETSI EN 300 386, ETSI EN 301 489-1, FCC Part 15 B Class A, GR-1089, Issue 6, GR-3108-CORE class 2, GR-63-CORE, Issue 5, ICES-003 Class A, IEC 60825-1, IEC 60825-2, ITU-T G.703, ITU-T G.8262, ITU-T G.8264, ITU-T G.8273.2 Class C, ITU-T G.8275.1, ITU-T G.8275.2, NEBS level 3, RoHS 2 (2011/65/EU), UL 62368-1, VCCI Class A, WEEE 2012/19/EU
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ag, IEEE 802.1AX, IEEE 802.1D, IEEE 802.3-2018, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3bs, IEEE 802.3by, IEEE 802.3z, ITU-T G.703, ITU-T G.8262, ITU-T G.8264, ITU-T G.8273.2, ITU-T G.8275.1, ITU-T G.8275.2, ITU-T Y.1564, ITU-T Y.1731, MEF 3.0
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
