Product Information

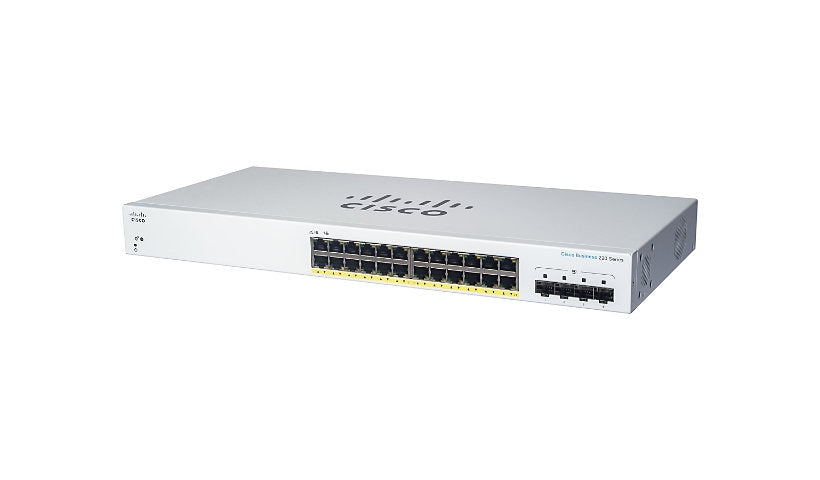

Cisco's Business 220 CBS220-24T-4G is a smart switch for small offices with 24 Gigabit RJ-45 ports and four Gigabit SFP uplinks. It offers 56 Gbps of switching capacity, supports 802.1x, ACLs and auto voice VLAN, and draws about 18 W from its internal power supply.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 4 x Gigabit SFP uplinks
- 56 Gbps switching, 41.66 Mpps
- Smart managed, 802.1x, ACL, voice VLAN
- Internal power supply, rack mountable
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Business 220 Series
Model: CBS220-24T-4G
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: Canada, Chile, Colombia, Latin America, Mexico, North America
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, RSTP, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet, TFTP
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, RSTP, STP
Authentication Method: RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+
Encryption: SSL
Performance: Forwarding performance (64-byte packet size): 41.66 Mpps, Switching capacity: 56 Gbps
Capacity: ACL rules: 512, Buffer capacity (MB): 4.1, MSTP instances: 16, VLANs supported: 256
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 9216 bytes
Features: 802.1x authentication, Access Control List (ACL) support, Auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX), BOOTP support, BPDU Guard, Broadcast Storm Control, Cable Diagnostics Function, Cisco Discovery Protocol (CDP), DHCP client, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dual firmware images, Duplicate Address Detection (DAD), Energy Efficient Ethernet, Fanless, Generic VLAN Registration Protocol (GVRP), Guest VLAN, Head-of-line (HOL) Blocking Prevention, IGMP snooping, LACP support, LLDP support, LLDP-MED, Loopback detection, MAC address filtering, Management Information Base (MIB), Multicast Storm Control, Neighbor Discovery Protocol (NDP), Port mirroring, Port Security, Quality of Service (QoS), STP loop guard, Syslog support, TCP support, Telnet server, Type of Service (ToS), Unknown Storm Control, User Datagram Protocol (UDP), VLAN management, VLAN support, Weighted Round Robin (WRR)
Smart: Yes
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP (uplink)
Interface Provided: 24 x 10/100/1000 Base-T RJ-45, 4 x 1000Base-X SFP uplink
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 18 watt
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 64 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 10 - 90% (non-condensing)
MTBF: 1,049,371 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Link/activity/speed, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 8 inch
Weight: 6.06 lbs
Certifications and Listing
Compliant Standards: C-Tick, CSA 22.2, FCC CFR47 Part 15 A, UL 60950
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - replacement - 3 years - response time: next business day
