Product Information

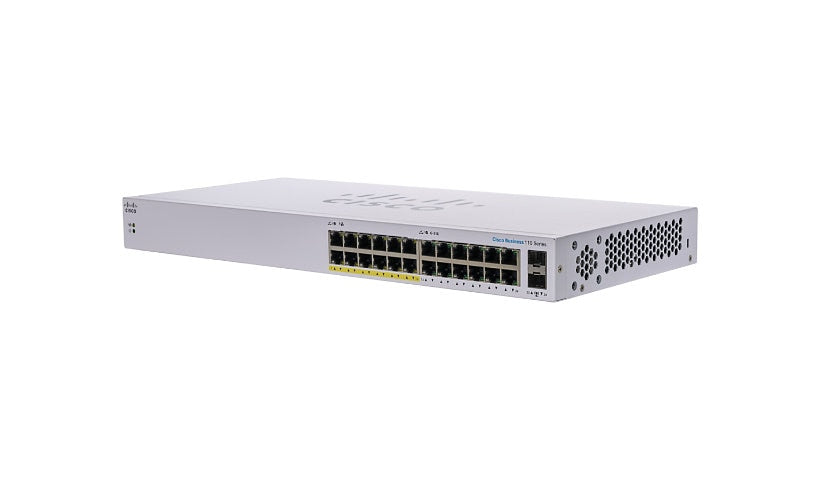

The Cisco Business CBS110-24PP is a plug and play unmanaged switch with 24 Gigabit ports, 12 of which supply PoE from a 100 W budget, plus two Gigabit combo ports (RJ-45 or SFP). It is fanless, energy efficient and can sit on a desk, mount on a wall or go in a rack.
Key Features
- 24 x Gigabit RJ-45 ports (12 PoE)
- 2 x Gigabit RJ-45/SFP combo ports
- 100 W PoE budget
- Unmanaged, plug and play, QoS
- Fanless, cable diagnostics
- Desktop, wall or rack mount, kit included
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Business 110 Series
Model: 110-24PP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: Canada, Chile, Colombia, Latin America, Mexico, United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Forwarding performance (64-byte packet size): 35.7 Mpps, Switching capacity: 48 Gbps
Capacity: Buffer capacity (MB): 2
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, Energy Efficient Ethernet, Fanless, Flow control, Head-of-line (HOL) blocking, Loopback detection, Quality of Service (QoS), Security slot (Kensington security lock compatible), Weighted Round Robin (WRR)
Connectivity
Ports: 24
Port Quantity: 12
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 12
Ports Type (2nd): 10/100/1000
Ports (3rd) Quantity: 2
Interface Provided: 12 x 10/100/1000 Base-T RJ-45, 12 x 10/100/1000 Base-T RJ-45 PoE, 2 x 1000Base-T / 1000Base-X RJ-45/SFP
Power Over Ethernet (PoE): PoE
QSFP Slots: Combo Gigabit SFP
Power
Device Type: Internal power supply
PoE Budget: 100 watt
Memory and Processor
Processor Brand: ARM
Clock Speed: 400 megahertz
RAM Installed: 64 megabyte
Flash Memory Installed: 8 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 340,703 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Status Indicators: Link/activity, PoE, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 8 inch
Weight: 6.57 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
