Product Information

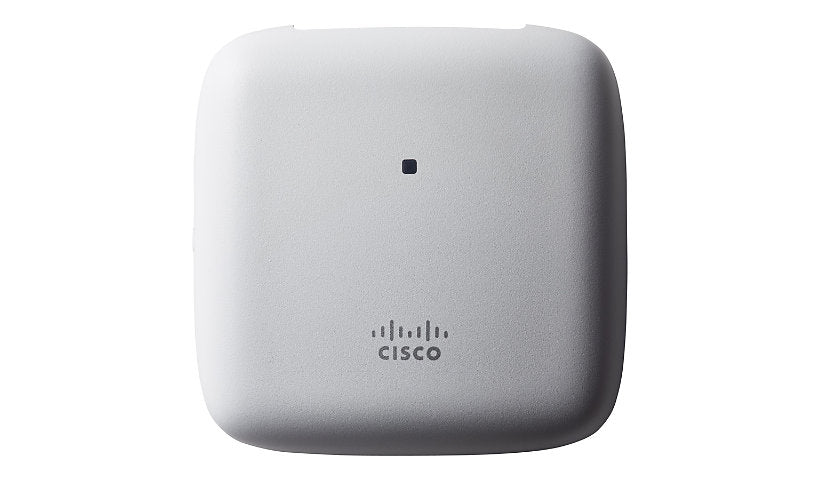

The Cisco Business 140AC (CBW140AC-B) is a compact indoor Wi-Fi 5 Wave 2 access point with 2x2 MU-MIMO for small business offices. It supports mesh networking, VLANs and 802.1x, runs on 802.3af PoE at about 8.3 W, and includes a ceiling rail clip and bracket.
Key Features
- Wi-Fi 5 Wave 2 dual band
- 2x2 MU-MIMO
- Mesh networking support
- Gigabit RJ-45, 802.3af PoE
- About 8.3 W
- Mounting bracket and clip included
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Business
Model: 140AC
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-FAST, Extensible Authentication Protocol (EAP), MS-CHAP v.2, RADIUS
Data Transfer Rate: 1 GBps
Capacity: VLANs supported: 16, Wireless clients per Wi-Fi radio: 200, Wireless clients: 400
Wireless LAN: 802.11a/b/g/n/ac Wave 2
Network Band: 2.4 GHz, 5 GHz
Network Device: Maximum data rate (2.4 GHz): 300 Mbps, Maximum data rate (5 GHz): 867 Mbps
Features: 802.1x authentication, Authentication, Authorization and Accounting (AAA), Ceiling mountable, DFS support, Manageable, Mesh networking, MU-MIMO technology, RADIUS support, SU-MIMO technology, VLAN support, Wall mountable, Wi-Fi Multimedia (WMM) support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.3 watt
Memory and Processor
Clock Speed: 710 megahertz
RAM Installed: 1 GB
Flash Memory Installed: 256 megabyte
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 1.3 inch
Width: 5.9 inch
Depth: 5.9 inch
Weight: 14.11 ounce
Included Items
Included Accessories: Ceiling rail mount clip, Mounting bracket, Torx security screw
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11r, IEEE 802.1x, IEEE 802.3af
Compliant Standards: ARIB STD-T66, ARIB STD-T71, CAN/CSA-C22.2 No. 60950-1, EMI Class B, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 50385, EN 60950-1, FCC OET Bulletin 65c, FCC Part 15.107, FCC Part 15.109, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-1, RSS-102, RSS-247, UL 2043, UL 60950-1, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
