Product Information

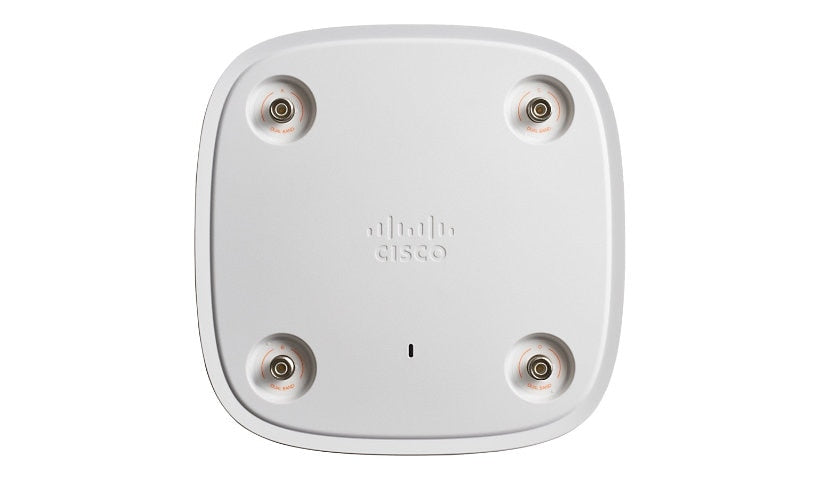

The Cisco Catalyst 9115AXE is an indoor Wi-Fi 6 access point with four external antenna connectors and 4x4 MU-MIMO, suited to small and mid size networks. It has a 2.5G mGig UPOE port, a management port, USB, Bluetooth 5.0, 2 GB RAM and 1 GB flash, and includes a ceiling grid clip and bracket.
Key Features
- Wi-Fi 6, 4x4 MU-MIMO
- 4 external antenna connectors
- 2.5G mGig RJ-45, UPOE
- Bluetooth 5.0
- 2 GB RAM, 1 GB flash
- Ceiling clip and bracket
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9115AXE
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Puerto Rico, United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: IPSec, IPv6
Remote Management: NETCONF, RESTCONF
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-SIM, FIPS, PEAP, TLS, TTLS, WPA, WPA2
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Features: 4x4 MU-MIMO technology, 8x8 MU-MIMO technology, Access Control List (ACL) support, Beamforming technology, Cisco Trust Anchor module, Cisco VideoStream technology, Cyclic shift diversity (CSD), DFS support, Dynamic QoS, Guest access, Image signing, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Pre-Shared Key (PSK), Quality of Service (QoS), Radio resource management (RRM), Secure Boot, Target Wait Time (TWT)
Software Type: CAPWAP Software Image
Connectivity
Interface Provided: 1 x 1/2.5GBase-T - RJ-45, 1 x management - RJ-45, 1 x USB 2.0, 4 x antenna
Power Over Ethernet (PoE): UPOE
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 8 inch
Depth: 8 inch
Weight: 2.43 lbs
Included Items
Included Accessories: Ceiling grid clip, Low profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Compliant Standards: ARPANSA, AS/NZS 2772, AS/NZS 4268, AS/NZS 60950-1, AS/NZS CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-1, CISPR 24, CISPR 32, CNS 13438, EMI Class B, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 50385, EN 55032, EN 55035, EN 60601-1-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62209-1, EN 62209-2, EN55024, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, ICES-003, IEC 60950-1, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, LP0002, QCVN, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, TCVN 7189, UL 2043, UL 60950-1, USGv6, VCCI V-3
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
