Product Information

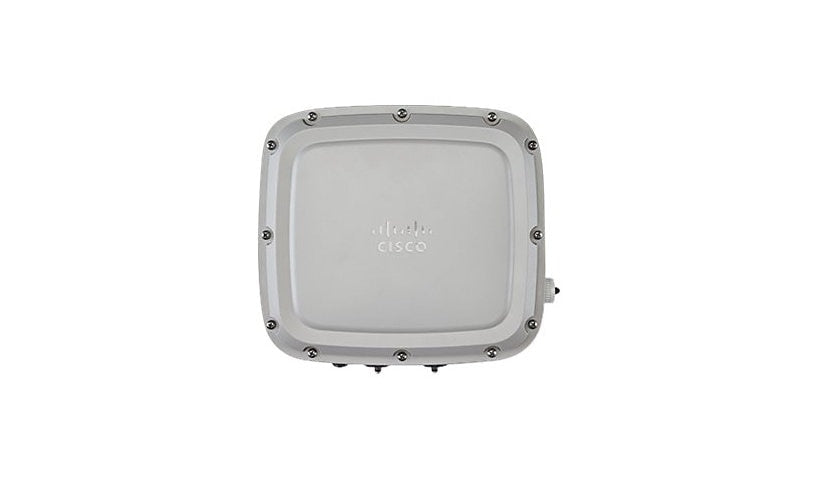

The Cisco Catalyst 9124AXD is the directional antenna model of the 9124AX outdoor Wi-Fi 6 family, built to focus coverage across a specific area. It offers 4x4 MU-MIMO, a 2.5G mGig port with UPOE, a Gigabit port, an SFP slot, a management port and Bluetooth 5.0, and runs from -40 to 149 °F.
Key Features
- Outdoor Wi-Fi 6, 4x4 MU-MIMO
- Integrated directional antenna
- 2.5G + 1G RJ-45, SFP slot
- UPOE powered
- Bluetooth 5.0 BLE
- -40 to 149 °F
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9124AXD
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
Authentication Method: EAP-FAST, EAP-TLS, EAP-TTLS, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, TKIP, TLS, TTLS, WPA, WPA2, WPA3, WPA3-Enterprise
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n (draft 2.0)/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Directional
Features: 4K/8K UHD video streaming, 4x4 MU-MIMO technology, 802.1x authentication, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), DFS support, Image signing, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wait Time (TWT), Wi-Fi Multimedia (WMM) support, Wireless Intrusion Prevention System (WIPS)
Software Type: CAPWAP Software Image
Connectivity
Interface Provided: 1 x 1/2.5GBase-T - RJ-45, 1 x 1000Base-T - RJ-45, 1 x 1000Base-X - SFP, 1 x management - RJ-45
Power Over Ethernet (PoE): UPOE
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 0 - 100%
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 3.2 inch
Width: 10.2 inch
Depth: 9.2 inch
Weight: 6.39 lbs
Certifications and Listing
Compliant Standards: 47 CFR Part 1.1310, 47 CFR Part 2.1091, ARPANSA, AS/NZS 2772, AS/NZS 4268:2017, AS/NZS 60950-1, AS/NZS 62368.1, AS/NZS CISPR 32 Class B, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 24:2010, CISPR 32:2015, CNS 13438, EN 300 328 V2.1.1, EN 301 893 V2.1.1, EN 50385:2017, EN 55032:2015/A11:2020, EN 55035:2017, EN 60068-2-5, EN 60950-1, EN 60950-22, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 62368-1, EN55024, ETSI EN 301 489-1 V2.2.3 (2019-11), ETSI EN 301 489-17 V3.1.1 (2017-02), FCC CFR47 Part 15 B, FCC Subpart C 15.247, FCC Subpart C 15.407, ICES-003:2016 issue 6 Class B, IEC 60529, IEC 60950-1, IEC 60950-22, IEC 62368-1, IP66, IP67, Japan Std. 33a, Japan Std. 66, Japan Std. 71, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, KN35:2015, LP0002, MIL-STD-810G 514.4, NEMA 250-2008, QCVN 112:2017, QCVN 118:2018, QCVN 18:2014, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, TCVN 7317, UL 60950-1, UL 60950-22, UL 62368-1, VCCI-CISPR 32:2016
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n (draft 2.0), IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.15.1, IEEE 802.15.4, IEEE 802.1x, IEEE 802.3, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Lifetime Limited
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: 10 days
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
