Product Information

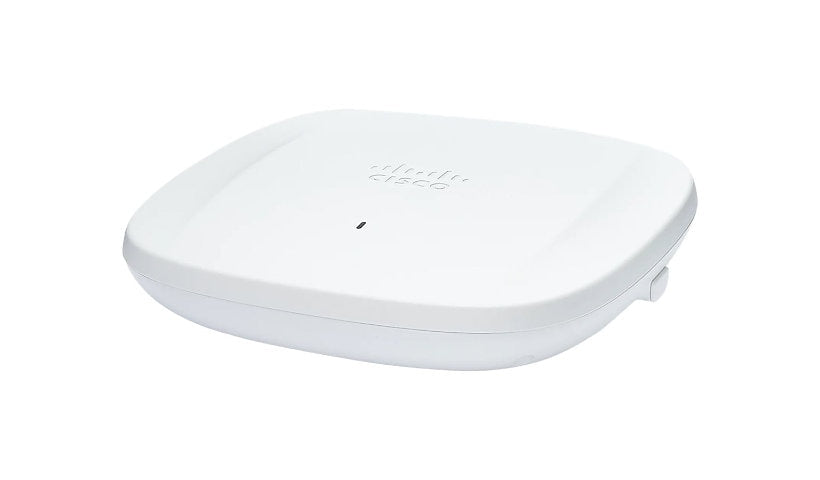

The Cisco Catalyst 9136I is a Wi-Fi 6E access point covering 2.4, 5 and 6 GHz with 8x8 MU-MIMO. It has two 5G multigigabit UPOE ports for redundancy, BLE 5.0 and a USB port.
Key Features
- Wi-Fi 6E tri-band
- 8x8 MU-MIMO
- 2 x 5G mGig ports, UPOE
- BLE 5.0
- USB port
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9136I
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Puerto Rico, United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth 5.0 LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP, MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAPv1, WPA2, WPA3
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.0 LE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 4x4:4 MU-MIMO technology, 8x8 MU-MIMO technology, Band steering, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), DFS support, Dynamic Frequency Selection (DFS), Image signing, LLDP support, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wait Time (TWT), Target Wake Time (TWT)
Connectivity
Interface Provided: 1 x management - RJ-45, 1 x USB 2.0, 2 x 100M/1G/2.5/5 Gigabit Ethernet (UPOE) - RJ-45
Power Over Ethernet (PoE): UPOE
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 2.2 inch
Width: 9.9 inch
Depth: 9.9 inch
Weight: 3.64 lbs
Certifications and Listing
Compliant Standards: 47 CFR Part 2.1091, AN/NZS 60950.1, AS/NZS 2772, AS/NZS 4268:2017, AS/NZS 62368.1, AS/NZS CISPR32:2015 Class A, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32, CNS13438:2006 Class A, Draft EN 303 687 V0.0.14, EN 300 328 V2.2.2, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4 (2020-09), EN 301 893 V2.1.1, EN 50385:2017, EN 55032:2015+A11:2020, EN 55035:2017/A11:2020, EN 60950-1, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 61000-6-1:2019, EN 62368-1 Third Edition, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, ICES-003 issue 7, IEC 60950-1, IEC 61000-3-2:2019, IEC 62368-1 Third Edition, Japan Std. 66, Japan Std. 71, KS C 9832, KS C 9835, KS X 3124:2020, KS X 3126:2020, LP0002, QCVN 112:2017, QCVN 118:2018, QCVN 18:2014, RSP-100, RSS-102, RSS-247, RSS-GEN, UL 2043, UL 60950-1, UL 62368-1, UL 62368-1 Third Edition, VCCI-CISPR 32:2016
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
