Product Information

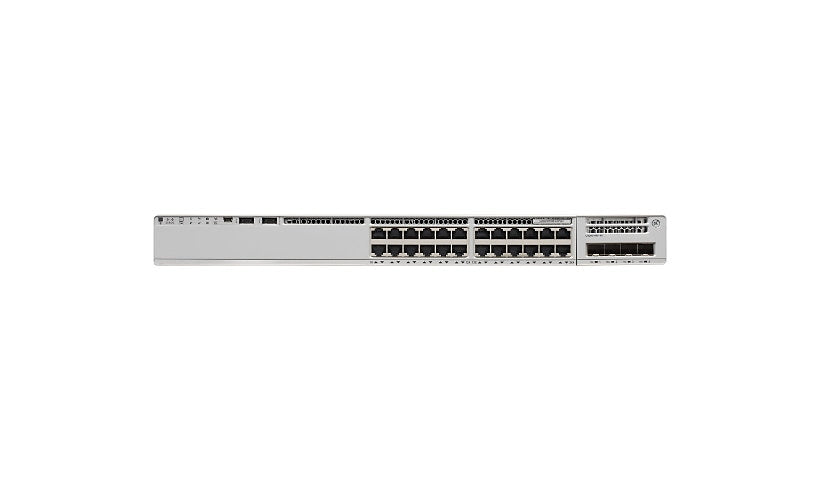

The Cisco Catalyst C9200-24P-E is a stackable access switch with 24 Gigabit PoE+ ports, licensed with Network Essentials. It offers 128 Gbps of switching capacity and 160 Gbps of stacking bandwidth, with MACsec, Flexible NetFlow and Layer 3 features such as EIGRP stub routing.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W each
- Stackable, 160 Gbps stacking bandwidth
- Network Essentials, Layer 3
- MACsec, Flexible NetFlow
- 4 GB RAM, 4 GB flash
- Hot-plug power, redundant optional
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9200
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: NETCONF, RESTCONF
Routing Protocol: OSPF, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Encryption: 128-bit AES
Performance: Forwarding rate: 190.4 Mpps, Stacking bandwidth: 160 Gbps, Switching bandwidth: 128 Gbps
Capacity: ACL scale entries: 1600, IPv4 routing table entries: 4000, IPv6 routing table entries: 2000, Packet buffer size: 6 MB, Switched virtual interfaces (SVIs): 1000, Virtual networks: 4, VLAN IDs: 4096
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: Blue Beacon LED, Built-in ASIC, Cisco StackWise Technology, Control plane protection (CoPP), DNA support, EIGRP Stub Routing, Embedded Event Manager (EEM), First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, Superior QoS
Smart: Yes
Software Type: Cisco Network Essentials
Edition: Network Essentials
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Interface Provided: 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 4 GB
Technical Information
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 422,310 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Built-in Devices: RFID tag
Dimensions and Weight
Height: 13.8 inch
Width: 1.7 inch
Depth: 17.5 inch
Weight: 12.13 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, ICES-003 Class A, IEC 60950-1, KN32, KN35, Plug and Play, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
