Product Information

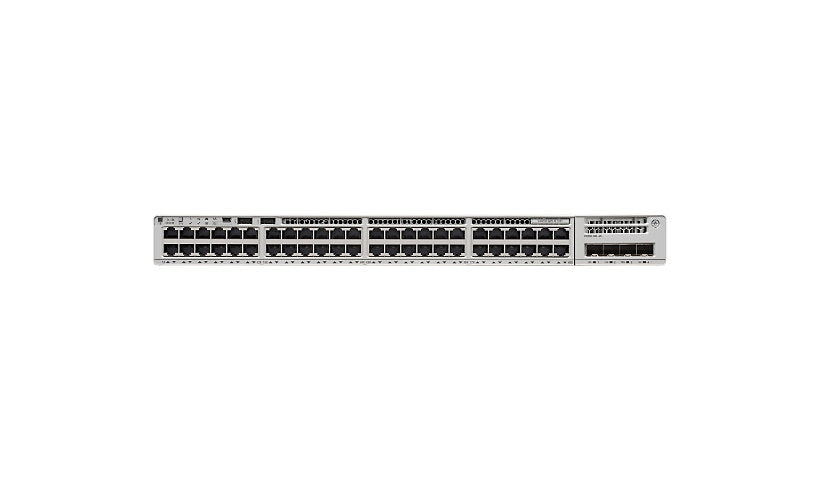

The Cisco Catalyst C9200-48P-E is a stackable access switch with 48 Gigabit PoE+ ports, sold as the Essential Edition. It provides a 740 W PoE budget and 176 Gbps of switching capacity, with MACsec, NetFlow and DNA support. One hot-plug power supply is installed.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports, 30 W each
- 740 W PoE budget
- 176 Gbps switching, 261.9 Mpps
- Stackable, MACsec, Flexible NetFlow
- 4 GB RAM, 4 GB flash
- 1 hot-plug power supply installed
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9200
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: NETCONF, RESTCONF
Routing Protocol: EIGRP, EIGRP for IPv6, IS-IS, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, VRRP
Performance: Forwarding rate: 261.9 Mpps, Switching capacity: 176 Gbps, Wireless bandwidth: up to 48 Gbps
Capacity: ACL scale entries: 16000, Direct IPv4 routes: 10000, Flexible NetFlow entries: 16000, Indirect IPv4 routes: 4000, IPv4 routes: 14000, IPv4 routing table entries: 4000, IPv6 routing table entries: 2000, MAC addresses: 32000, Multicast scale: 1000, Packet buffer size: 6 MB, Virtual networks: 4, VLAN IDs: 1000
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Operating System Required: Cisco IOS XE 16.9.2 or later
Features: Control plane protection (CoPP), DNA support, Embedded Event Manager (EEM), First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Sampled NetFlow, Switched Port Analyzer (SPAN)
Smart: Yes
Edition: Essential Edition
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Interface Provided: 48 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Power Provided: 1000 watt
PoE Budget: 740 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 375,570 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 13.8 inch
Width: 17.5 inch
Depth: 1.7 inch
Weight: 12.13 lbs
Certifications and Listing
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance parts replacement - lifetime - response time: next business day, Technical support - phone consulting - 90 days
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
