Product Information

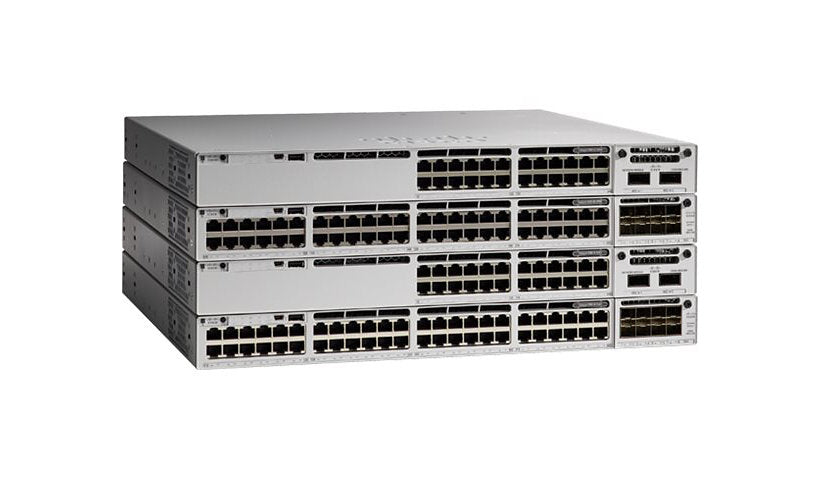

Cisco's Catalyst C9300L-48P-4X-A is a stackable access switch with 48 Gigabit PoE+ ports and four fixed 10G SFP+ uplinks, licensed with Network Advantage. It has a 505 W PoE budget, 176 Gbps of switching capacity and StackWise-320 stacking, with one hot-plug power supply installed.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 10G SFP+ uplinks
- 505 W PoE budget
- 176 Gbps switching, 130.95 Mpps
- StackWise-320, Network Advantage
- 1 hot-plug power supply, redundant optional
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9300L
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP-4, EIGRP, EIGRP for IPv6, HSRP, IS-IS, MPLS, MSDP, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Encryption: 128-bit AES, 256-bit AES
Performance: Forwarding rate with stacking: 369.05 Mpps, Forwarding rate: 130.95 Mpps, Switching capacity with stacking: 496 Gbps, Switching capacity: 176 Gbps
Capacity: ACL scale entries: 5120, IPv4 routes: 32000, IPv6 routes: 16000, Multicast scale: 8000, QoS scale entries: 5120, Routed ports: 416, Switched virtual interfaces (SVIs): 1000, VLANs supported: 4094
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: 802.1x authentication, Access Control List (ACL) support, Audio Video Bridging (AVB), Blue Beacon LED, Cisco StackWise-320 technology, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Class of Service (CoS), CoAP support, Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), Graceful Insertion and Removal (GIR) mode, Location ID Separation Protocol (LISP), MACsec support, Non-Stop Forwarding (NSF), Precision Time Protocol (PTP), Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Secure Boot, Security Group Tag (SGT) caching, Shaped Round Robin (SRR), Switched Port Analyzer (SPAN), Virtual Routing and Forwarding (VRF), Zero-touch provisioning (ZTP)
Edition: Network Advantage
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+ (uplink)
Interface Provided: 1 x console, 1 x management (LAN) RJ-45, 1 x USB 2.0, 4 x 10GBase-X SFP+ uplink, 48 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Provided: 715 watt
PoE Budget: 505 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 309,020 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Status Indicators: Status
Dimensions and Weight
Height: 17.7 inch
Width: 17.5 inch
Depth: 1.7 inch
Weight: 15.5 lbs
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 25, CISPR 32 Class A, CNS 13438, EN 300 386, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, EN 55035, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, IEC 61000-6-1, KN32, KN35, QCVN, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-2/2015.04, V-3 Class A, V-3/2015.04, VCCI-CISPR 32:2016 Class A
Compliant Standards: IEEE 1588v2, IEEE 802.1ae, IEEE 802.1BA, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Wi-Fi CERTIFIED 6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance parts replacement - lifetime - response time: next business day
