Product Information

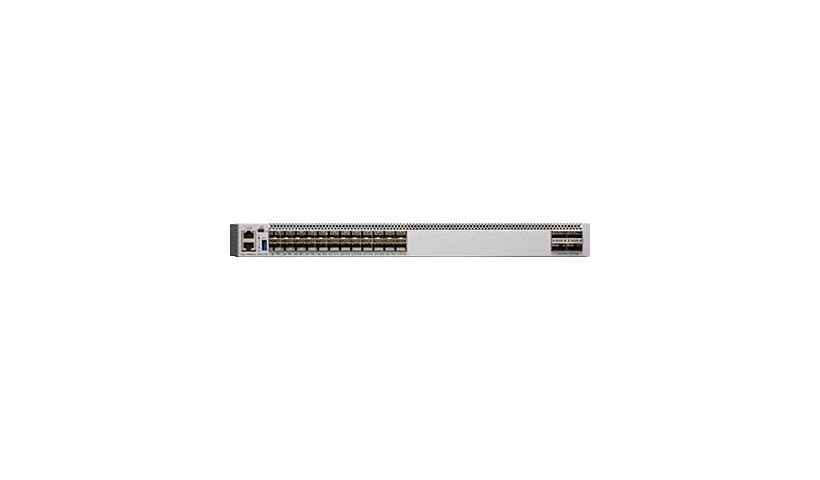

Cisco's Catalyst C9500-24Y4C-A is a fixed core and aggregation switch with 24 SFP28 ports at 25G and four 100G ports, licensed with Network Advantage. It offers 1.6 Tbps of switching capacity and 1 Bpps forwarding, with one hot-plug power supply installed and a second optional for 1+1.
Key Features
- 24 x 25G SFP28 ports
- 4 x 100G ports
- 1.6 Tbps switching, 1 Bpps
- Network Advantage, Layer 3, EoMPLS
- 16 GB RAM, 16 GB flash
- 1 hot-plug power supply installed, 1+1 optional
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9500
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3, TFTP
Routing Protocol: BGP, EIGRP, IGMP, IS-IS, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RIPng, VRRP
Encryption: 256-bit AES
Performance: Forwarding rate: 1 Bpps, Switching capacity (full duplex): 1.6 Tbps
Capacity: FNF entries: 96000, Host IPv4 routes: 90000, Host IPv6 routes: 90000, Indirect IPv4 routes: 212000, Indirect IPv6 routes: 212000, Multicast scale: 32000, QoS ACL scale: 16000, Routing table entries: 80000, Security ACL scale: 270000, Switched virtual interfaces (SVIs): 4000, VLAN IDs: 4000
MAC Address Table Size: 64K entries
Jumbo Frame Support: 9198 bytes
Features: Access Control List (ACL) support, Class-Based Weighted Fair Queuing (CBWFQ), CoAP support, Control plane protection (CoPP), DHCP support, Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), Hierarchical Virtual Private LAN Service (H-VPLS), Hot Standby Router Protocol (HSRP) support, Integrated Wireshark, Layer 3 VPN (L3VPN) support, MACsec support, Maximum Likelihood Demodulation (MLD), MPLS support, Multicast Source Discovery Protocol (MSDP), NAT support, Non-Stop Forwarding (NSF), Non-Stop Routing (NSR), PAT support, Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Switched Port Analyzer (SPAN), Trunking, Virtual Route Redundancy Protocol (VRRP) support, Virtual Routing and Forwarding (VRF), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Edition: Network Advantage
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 25 Gigabit SFP28
Interface Provided: 2 x USB 3.0, 24 x 25Gbit LAN SFP28, 4 x 100Gbit LAN
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Provided: 650 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
Processors Installed: 1
Clock Speed: 2.4 GHZ
RAM Installed: 16 GB
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 149 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 336,780 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Built-in Devices: RFID tag
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 18 inch
Weight: 20.99 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
