Product Information

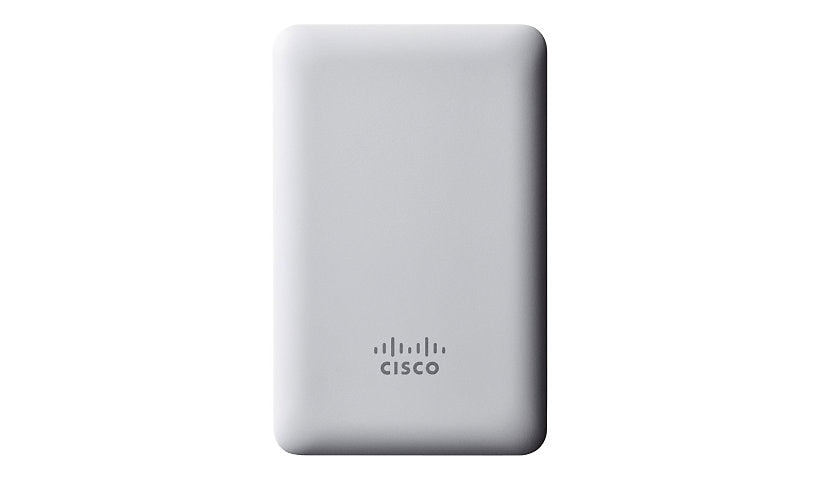

Cisco's Catalyst 9105AXW is a Wi-Fi 6 wall plate access point for hotels, dorms and branch offices. It offers 2x2 MU-MIMO with Bluetooth 5.0, a 2.5G uplink, three Gigabit local ports, a management port and USB, and supports Cisco VideoStream and Trust Anchor security.
Key Features
- Wi-Fi 6 dual band, 2x2 MU-MIMO
- 1/2.5G uplink + 3 x Gigabit ports
- Bluetooth 5.0 LE, USB
- Cisco VideoStream, Trust Anchor
- Wall plate design
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9105AXW
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: Puerto Rico, United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Bluetooth 5.0, IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-SIM, PEAP, TLS, TTLS, WPA, WPA2, WPA3
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Features: 2x2 MU-MIMO technology, Access Control List (ACL) support, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cisco VideoStream technology, Cyclic shift diversity (CSD), DFS support, Dynamic QoS, Guest access, Image signing, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Pre-Shared Key (PSK), Quality of Service (QoS), Radio resource management (RRM), Secure Boot, Target Wait Time (TWT)
Connectivity
Interface Provided: 1 x 1/2.5GBase-T - RJ-45, 1 x management - RJ-45, 1 x USB 2.0, 3 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): UPOE
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: Wall Mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.3 inch
Width: 6.3 inch
Depth: 3.5 inch
Weight: 13.16 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11d, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Compliant Standards: ARPANSA, AS/NZS 2772, AS/NZS 4268, AS/NZS 60950-1, AS/NZS CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-1, CISPR 24, CISPR 32, CNS, EN 300 328, EN 301 489-1, EN 301 489-17, EN 301 893, EN 50385, EN 55032, EN 55035, EN 60601, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 62209-1, EN 62209-2, EN55024, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-1, KN 301 489-17, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, KN35, LP0002, QCVN, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, TCVN 7189, UL 2043, UL 60950-1, VCCI V-3, VCCI-CISPR 32:2016
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: 10 days
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
