Product Information

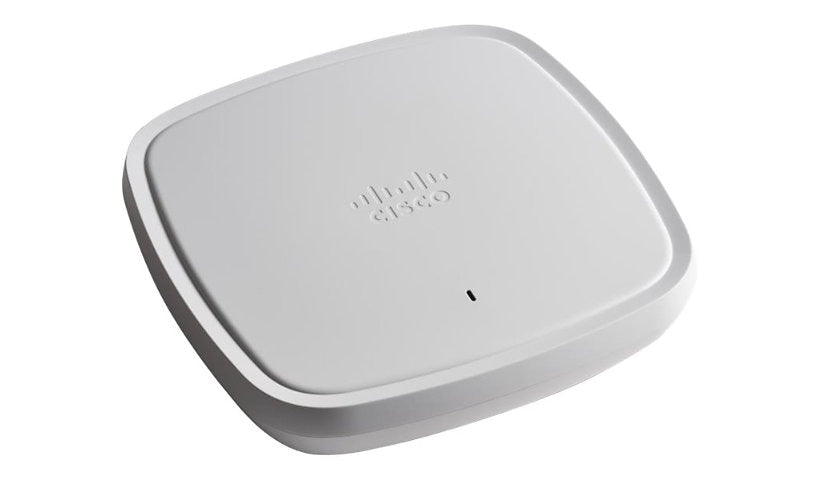

Cisco's Catalyst 9130AXI is a high end indoor Wi-Fi 6 access point with 8x8 MU-MIMO (eight spatial streams), BLE and Zigbee IoT radios and a 5G multi-gig UPOE uplink. It has 2 GB RAM and 1 GB flash and comes with a ceiling grid clip and a low profile bracket.
Key Features
- Wi-Fi 6 dual band, 8x8 MU-MIMO
- 100M-5G RJ-45 (UPOE)
- BLE and Zigbee IoT
- 2 GB RAM, 1 GB flash
- USB, management port
- Ceiling clip and bracket included
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9130AXI
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-SIM, PEAP, TLS, TTLS, WPA2, WPA3
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.0
Network Band: 2.4 GHz, 5 GHz
Spread Spectrum Method: OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE), Zigbee
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 4x4 MIMO technology, 802.1x authentication, 8x8 MU-MIMO technology, Cisco Trust Anchor module, Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), LLDP support, Maximum Ratio Combining (MRC), MU-MIMO technology, Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wait Time (TWT), Wireless Intrusion Prevention System (WIPS)
Software Type: CAPWAP Software Image
Connectivity
Interface Provided: 1 x 1/2.5/5GBase-T (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0
Power Over Ethernet (PoE): UPOE
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 1.9 inch
Width: 8.9 inch
Depth: 8.9 inch
Weight: 3.2 lbs
Included Items
Included Accessories: Ceiling grid clip, Low profile bracket
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.15.4, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, Wi-Fi CERTIFIED 6
Compliant Standards: ARPANSA, AS/NZS 2772, AS/NZS 4268, AS/NZS 60950-1, AS/NZS CISPR 32 Class B, CAN/CSA-C22.2 No. 60950-1, CISPR 24, CISPR 32, CNS, EN 300 328 V2.1.1, EN 301 489-1, EN 301 489-17, EN 301 893 V2.1.1, EN 50385, EN 55032, EN 55035, EN 60601-1-2:2015, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1:2007, EN 62209-1, EN 62209-2, EN55024, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC Part 15.247, FCC Part 15.407, ICES-003, IEC 60950-1, KN 489-1, KN 489-17, KN 61000-3-2, KN 61000-3-3, KN32, KN35, LP0002, QCVN, RSP-100, RSS-102, RSS-247, RSS-GEN, SRRC, UL 2043, UL 60950-1, VCCI-CISPR 32:2016
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
