Product Information

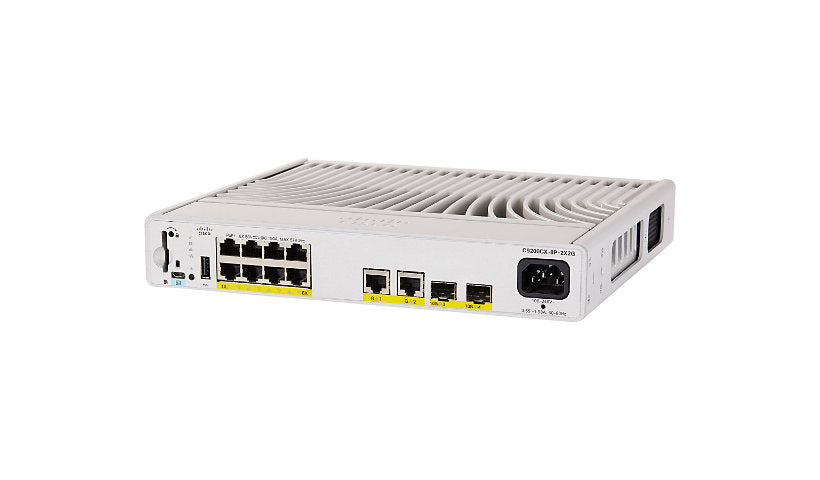

Cisco's Catalyst C9200CX-8P-2X2G-E is a compact Layer 3 switch with eight Gigabit PoE+ ports on a 240 W budget. Uplinks include two Gigabit RJ-45 ports and two 10G SFP+ ports, and it runs Network Essentials.
Key Features
- 8 x Gigabit PoE+ ports, 30 W
- 240 W PoE budget
- 2 x Gigabit RJ-45 + 2 x 10G SFP+ uplinks
- Network Essentials license
- 60 Gbps switching capacity
- Compact form factor
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9200CX
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, YANG
Routing Protocol: EIGRP, EIGRP for IPv6, MSTP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, VRRP
Encryption: 128-bit AES
Performance: Forwarding rate: 95.23 Mpps, Packet buffer size: 6 MB, Switching capacity: 60 Gbps
Capacity: ACL scale entries: 1600, Direct IPv4 routes: 10000, Flexible NetFlow entries: 16000, Indirect IPv4 routes: 4000, IPv4 routes: 14000, IPv4 routing entries: 4000, IPv6 routing entries: 2000, Multicast scale: 1000, PVST instances: 128, QoS scale entries: 1000, STP Virtual Ports for MST: 13000, STP Virtual Ports for PVST: 13000, Virtual networks: 16, VLAN IDs: 4096
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Features: 802.1x authentication, Access Control List (ACL) support, Cisco Unified Access Data Plane (UADP) 2.0, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, Fanless, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Switched Port Analyzer (SPAN), Trustworthy systems, Zero-touch provisioning (ZTP)
Edition: Network Essentials
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1000Base-T
Ports (3rd) Quantity: 2
Interface Provided: 1 x console (micro-USB), 1 x USB 2.0, 2 x 1000Base-T RJ-45, 2 x 10GBase-X SFP+ uplink, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Expansion Slots: 1 (total) / 1 (free) x SD Memory Card
Power Over Ethernet (PoE): PoE+
QSFP Slots: 10 Gigabit SFP+ (uplink)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 310 watt
PoE Budget: 240 watt
Memory and Processor
RAM Installed: 4 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 569,530 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Power
Built-in Devices: RFID tag
Dimensions and Weight
Height: 1.7 inch
Width: 10.6 inch
Depth: 9.6 inch
Weight: 6.59 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, Plug and Play, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified: No
