Product Information

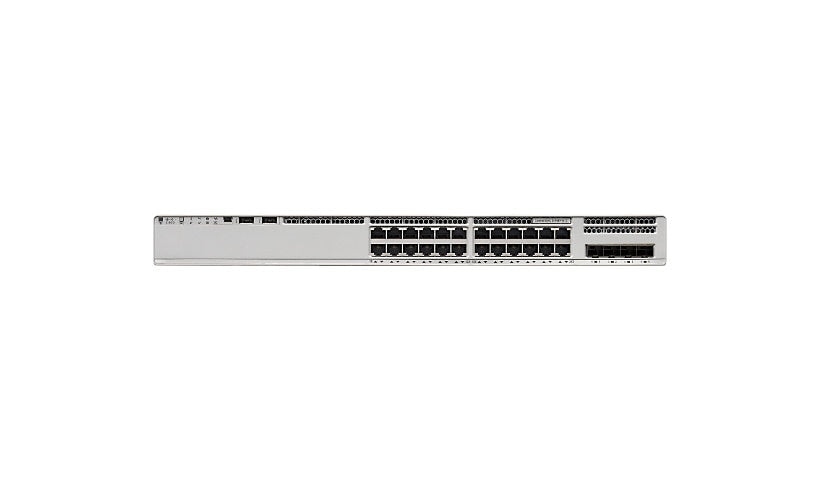

The Cisco Catalyst C9200L-24P-4G-E is a stackable access switch with 24 Gigabit PoE+ ports and four Gigabit SFP uplinks, licensed with Network Essentials. It provides a 740 W PoE budget and 80 Gbps of stacking bandwidth, and supports Layer 3 features. It has 2 GB of RAM, 4 GB of flash and a 6 MB packet buffer.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 4 x Gigabit SFP uplinks
- 740 W PoE budget
- Stackable, 80 Gbps stacking bandwidth
- Network Essentials, Layer 3
- 2 GB RAM, 4 GB flash
- 1U rack mount, hot-plug power supply
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9200L
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: EIGRP, EIGRP for IPv6, MSTP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Performance: Forwarding rate: 83.33 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 56 Gbps
Capacity: ACL scale entries: 1500, FNF entries: 16000, IPv4 routes: 11000, IPv4 routing table entries: 3000, IPv6 routing table entries: 1500, Multicast scale: 1000, QoS hardware queues per port: 8, Switched virtual interfaces (SVIs): 512, Virtual networks: 1, VLANs supported: 1024
MAC Address Table Size: 16000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: 6MB packet buffer, 802.1x authentication, Cisco StackWise Technology, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), NetFlow, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Switched Port Analyzer (SPAN)
Edition: Network Essentials
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP (uplink)
Interface Provided: 1 x console RJ-45, 1 x management (LAN) RJ-45, 1 x network stack device, 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1000Base-X SFP uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
PoE Budget: 740 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 4 GB
Technical Information
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 392,210 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Dimensions and Weight
Height: 11.3 inch
Width: 17.5 inch
Depth: 1.7 inch
Weight: 9.59 lbs
Certifications and Listing
Compliant Standards: AS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance parts replacement - lifetime - response time: next business day
