Product Information

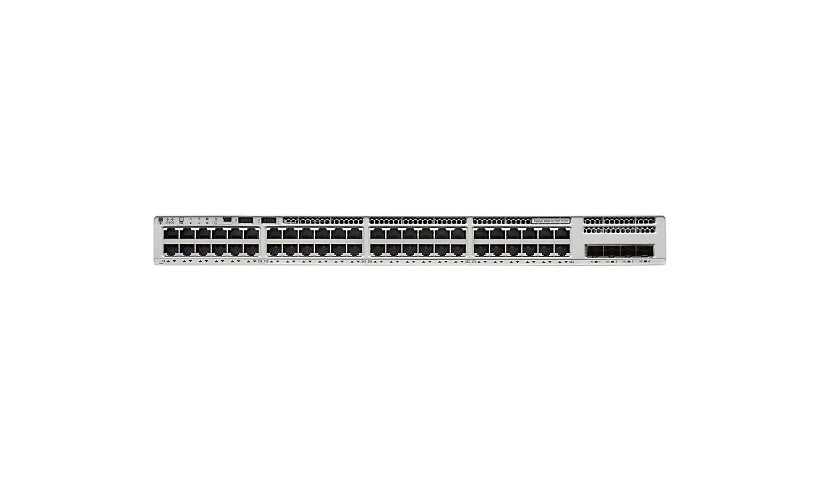

The Cisco Catalyst C9200L-48P-4X-E is a 48-port Gigabit PoE+ access switch with four 10G SFP+ uplinks, licensed with Network Essentials. It offers 176 Gbps of switching capacity and 80 Gbps of stacking bandwidth, with Layer 3 features such as EIGRP stub routing.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 10G SFP+ uplinks
- 176 Gbps switching capacity
- 80 Gbps stacking bandwidth
- Network Essentials, Layer 3
- Power supply listed as not installed
- 1U rack mount
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9200L
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: MSTP, OSPF, Policy-based routing (PBR), RIP, VRRP
Performance: Forwarding rate: 261.9 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 176 Gbps
Capacity: ACL scale entries: 1500, FNF entries: 16000, IPv4 routes: 11000, IPv4 routing table entries: 3000, IPv6 routing table entries: 1500, MAC addresses: 16000, Multicast scale: 1000, Queues per port (egress): 8, Switched virtual interfaces (SVIs): 512, Virtual networks: 1
Jumbo Frame Support: 9198 bytes
Features: 6MB packet buffer, Blue Beacon LED, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, EIGRP Stub Routing, Embedded Event Manager (EEM), Energy-Efficient Ethernet (EEE), First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Protocol Independent Multicast (PIM), PVLAN support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Source-Specific Multicast (SSM), Superior QoS, Switched Port Analyzer (SPAN)
Edition: Network Essentials
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply (not installed)
Required Voltage: AC 100-240 volt
Power Supplies Supported: 2
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 4 GB
Technical Information
MTBF: 346,270 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Built-in Devices: RFID tag
Dimensions and Weight
Height: 11.3 inch
Width: 17.5 inch
Depth: 1.7 inch
Weight: 12.13 lbs
Certifications and Listing
Compliant Standards: AES-128, AS/NZS 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, KN32, KN35, Plug and Play, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance parts replacement - lifetime - response time: next business day
