Product Information

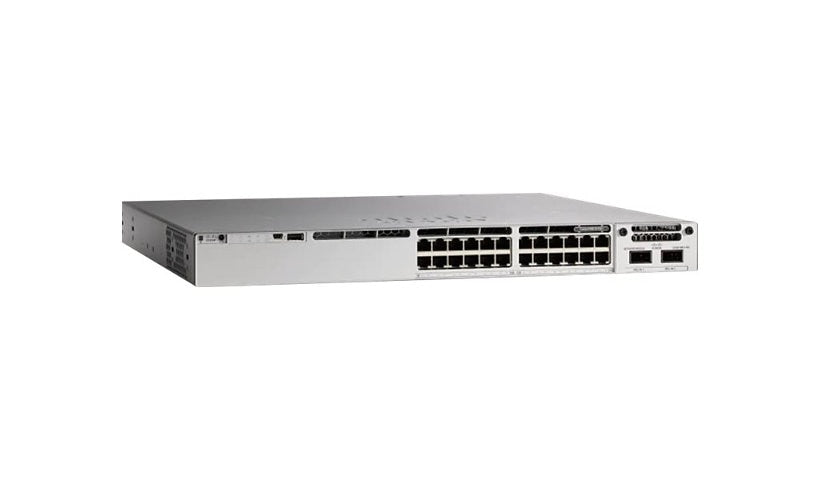

The Cisco Catalyst C9300-24P-A is a Layer 3 stackable access switch with 24 Gigabit PoE+ ports, a 445 W PoE budget and the Network Advantage license. It supports StackWise-480 and StackPower and ships with one hot-pluggable power supply.
Key Features
- 24 x Gigabit RJ-45 PoE+ ports
- 445 W PoE budget
- Network Advantage license
- StackWise-480 and StackPower
- 1 hot-pluggable power supply installed
- 128 Gbps switching capacity
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9300
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: BGP, EIGRP, HSRP, IGMP, IS-IS, MSDP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Encryption: 128-bit AES
Performance: Forwarding rate: 154.76 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 128 Gbps
Capacity: Flexible NetFlow entries: 64000, IPv4 routing table entries: 32000, IPv6 routing table entries: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Operating System Required: Cisco IOS Universal
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Edition: Network Advantage
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Interface Provided: 1 x USB 2.0, 48 x 1000Base-T RJ-45 PoE+
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Provided: 715 watt
PoE Budget: 445 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 299,000 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 17.5 inch
Weight: 16.31 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
