Product Information

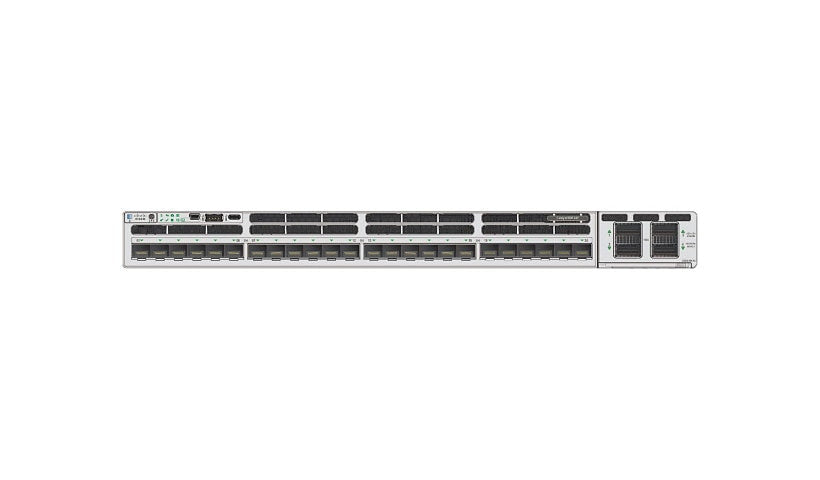

Cisco's Catalyst C9300X-24Y-E is a Layer 3 fiber switch with 24 SFP28 ports at 1, 10 or 25 Gbps and the Network Essentials license. It delivers 2 Tbps of switching capacity and stacks with StackWise-1T or StackWise-480.
Key Features
- 24 x 1/10/25G SFP28 ports
- 2,000 Gbps switching capacity
- Network Essentials license
- StackWise-1T and StackPower
- Layer 3, 16 GB RAM
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9300X
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: 25 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IS-IS, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
Encryption: 256-bit AES
Performance: Forwarding rate with stacking: 2232 Mpps, Forwarding rate: 1488 Mpps, Switching capacity with stacking: 3000 Gbps, Switching capacity: 2000 Gbps
Capacity: ACL scale entries: 5000, Direct IPv4 routes: 24000, Flexible NetFlow entries: 128000, Indirect IPv4 routes: 15000, IPv4 routing table entries: 39000, IPv6 routing table entries: 19500, Multicast routing flow table: 8000, PVST instances: 300, QoS scale entries: 4000, Routed ports: 448, STP Virtual Ports for MST: 13000, STP Virtual Ports for PVST: 13000, Switched virtual interfaces (SVIs): 1000, VLAN IDs: 4094
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Stackable: Stackable
Features: 16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC), Cisco StackPower technology, Cisco StackWise-1T technology, Cisco StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection (CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration, Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN), VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
Edition: Network Essentials
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 1/10/25 Gigabit SFP28
Interface Provided: 1 x USB 2.0, 24 x 1/10/25GBase-X SFP28
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Provided: 715 watt
Memory and Processor
RAM Installed: 16 GB
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 17.6 inch
Certifications and Listing
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Compliant Standards: AS/NZS 3548 Class A, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1, RoHS 5/6, TVCN 7317, UL 60950-1, VCCI Class A, VCCI V-3/2009 Class A
ENERGY STAR Certified: No
