Product Information

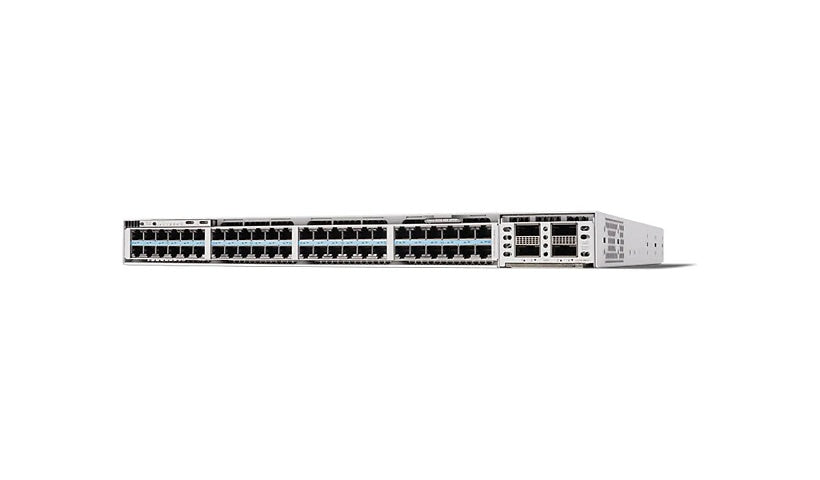

Cisco's Catalyst C9350-48HX is a stackable Layer 3 access switch with 48 multi-gigabit ports up to 10G, each with UPOE+ at up to 90 W. It offers 1760 Gbps of switching capacity, 3360 Gbps of stacking bandwidth and StackPower, with one power supply installed.
Key Features
- 48 x 100M/1G/2.5G/5G/10G RJ-45 UPOE+ ports, 90 W
- 4320 W PoE budget (per spec sheet)
- 1760 Gbps switching, 1309.44 Mpps
- StackWise, 3360 Gbps, StackPower
- 16 GB RAM, 18 GB flash
- 1 power supply installed, N+1 optional
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco
Model: C9350-48HX
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, NETCONF, RESTCONF, SSH, YANG
Routing Protocol: BGP-4, BGP-6, EIGRP, EIGRP for IPv6, IS-ISv4, OSPFv3, PIM-SM, RIP-2, RIPng
Authentication Method: Secure Shell (SSH)
Performance: Forwarding rate with stacking: 2499.84 Mpps, Forwarding rate: 1309.44 Mpps, Stacking bandwidth: 3360 Gbps, Switching capacity: 1760 Gbps
Capacity: ARP entries: 64000, IGMP snooping groups: 8000, IPv4 QoS ACL scale: 2000, IPv4 routes (Multicast): 8000, IPv4 routes: 192000, IPv4 security ACL scale: 5000, IPv6 neighbor discovery: 4000, IPv6 QoS ACL scale: 2000, IPv6 routes (Multicast): 4000, IPv6 routes: 96000, IPv6 security ACL scale: 25000, MAC addresses: 64000, MLD groups: 4000, NetFlow entries: 64000, Packet buffer size: 36, PVST instances: up to 10000, STP Virtual Ports for MST: 100000, STP Virtual Ports for PVST: 16000, Switched virtual interfaces (SVIs): 2000, VLAN IDs: 4094
MAC Address Table Size: 128K entries
Jumbo Frame Support: 9126 bytes
Stackable: Stackable
Operating System Required: Cisco IOS XE 17.18.1 or later
Features: ARP support, Bandwidth Shaping, Border Gateway Protocol 4 (BGP-4), Cisco StackPower technology, Cisco StackWise Technology, Cisco Trust Anchor module, EIGRP Stub Routing, First Hop Security (FHS), Flexible NetFlow (FNF), Graceful Insertion and Removal (GIR) mode, Hierarchical Quality of Service (HQoS), High Availability, IGMP support, Image signing, Intermediate System to Intermediate System (IS-IS), IP-routing, IPFIX, LACP support, MQC, Multicast Listener Discovery (MLD), Open Shortest Path First (OSPF), Out-of-band management, PIM-SM snooping, PIM-SSM snooping, Port Aggregation Protocol (PAgP) support, Protocol Independent Multicast (PIM), PVLAN support, QinQ VLAN, Quality of Service (QoS), RFID authentication, RSTP, Secure Boot, Software Maintenance Upgrade (SMU), Stateful switchover (SSO), STP support, Strict Priority Queuing (SPQ), Traffic metering, Virtual Output Queue (VOQ), VLAN mapping, VLAN support, Zero-touch provisioning (ZTP)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000/2.5G/5G/10GBase-T (UPoE+)
Interface Provided: 1 x 10/100/1000Base-T RJ-45 management, 1 x console RJ-45, 1 x USB 3.0, 1 x USB Type C console, 1 x USB Type C host, 2 x network stack device, 48 x 1000Base-T RJ-45 UPOE+ - 90 W
Expansion Slots: 1 (total) / 1 (free) x Stacking Module slot
Power Over Ethernet (PoE): UPOE+
Power
Device Type: Internal power supply
PoE Budget: 4320 watt
Power Supplies Installed: 1
Power Supplies Supported: 3
Redundant Power Supply Supported: N+1 (with optional power supply)
Redundant Power Supply: Optional
Memory and Processor
RAM Installed: 16 GB
Flash Memory Installed: 18 GB
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 167 degree Fahrenheit
Humidity Range Storage: 10 - 95% RH (non-condensing)
MTBF: 277,660 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: PoE, Port transmission speed, Status, System
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 18.6 inch
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP)
Compliant Standards: 47 CFR Part 15 Class A, AS/NZS 60950-1:2011, CAN/CSA-C22.2 No. 60950-1-07, CAN/CSA-C22.2 No. 62368-1-14, CISPR 24:2010+A1:2015, CISPR 32 Second Edition Class A, CNS13438:2006, EN 300 386, EN 300 386 V1.6.1, EN 55024:2010+A1:2015, EN 55032:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010:A1, GB 4943-95, ICES-003 issue 6:2016, IEC 60950-1, IEC 60950-1:2006, KN32:2015 Class A, KN35:2015, NOM-019-SCFI-1998, TCVN 7189: 2009 Class A, TCVN 7317:2003, UL 60950-1 Second Edition, UL 62368-1 Second Edition
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
