Product Information

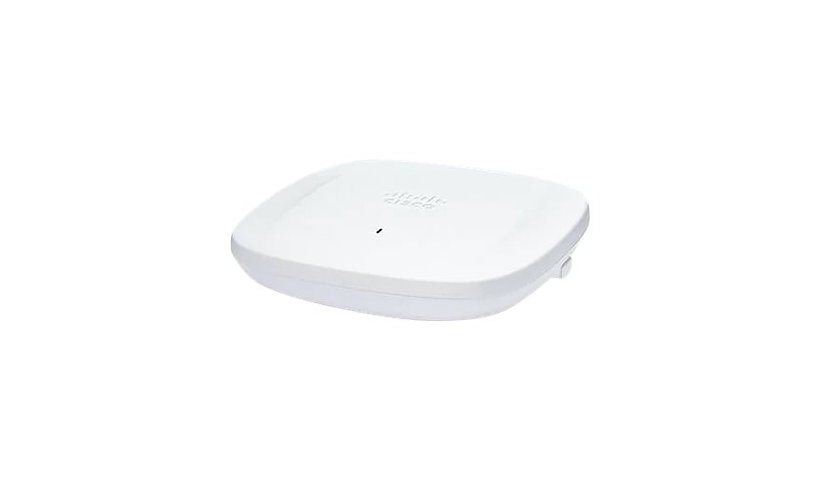

Cisco's Catalyst 9164I (CW9164I-B) is a tri-band Wi-Fi 6E indoor access point that covers 2.4, 5 and 6 GHz with up to 7.49 Gbps and WPA3 security. It has a 2.5G multi-gig UPOE uplink, Bluetooth 5.1 LE and USB.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 7.49 Gbps
- 100M/1G/2.5G RJ-45 (UPOE)
- Bluetooth 5.1 LE, USB 2.0
- WPA3 security
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: 9164I
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth 5.1 LE, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: HTTP
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP, MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, PEAPv1, WPA2-Enterprise, WPA2-Personal, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Data Transfer Rate: 7.49 GBps
Line Coding Format: OFDMA
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.1 LE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Directivity: Omni-directional
Operating System Required: Cisco IOS XE 17.9.1 or later
Features: 2x2:2 MU-MIMO technology, 4x4:4 MU-MIMO technology, Band steering, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, Cyclic shift diversity (CSD), DFS support, Dynamic Frequency Selection (DFS), Image signing, LLDP support, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, Secure Boot, Target Wake Time (TWT), Tri-Band, Universal power over Ethernet (UPOE), WLAN controller mode
Connectivity
Interface Provided: 1 x 100/1/2.5GBase-T (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0
Power Over Ethernet (PoE): UPOE
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Ruggedized Design: Indoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Dimensions and Weight
Height: 2.2 inch
Width: 9.5 inch
Depth: 9.5 inch
Weight: 3.53 lbs
Certifications and Listing
Compliant Standards: 47 CFR Part 2.1091, AS/NZS 2772.2, AS/NZS 4268:2017, AS/NZS 60950-1, AS/NZS 62368-1 Third Edition, AS/NZS CISPR32:2015+AMD1:2020, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1 Third Edition, CISPR 32:2015+AMD1:2019, CNS13438:2006, Draft EN 303 687 V0.0.14, EN 300 328 V2.2.2, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), EN 301 893 V2.1.1, EN 50385:2017, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 60950-1, EN 61000-3-3:2013+A1:2019, EN 61000-6-1:2019, EN 62311:2020, EN 62368-1 Third Edition, FCC CFR47 Part 15 B, FCC CFR47 Part 15 C, FCC Part 15.247, FCC Part 15.407, ICES-003 issue 7 Class B, IEC 60950-1, IEC 61000-3-2:2019, IEC 62368-1 Third Edition, Japan Std. 66, Japan Std. 71, KS C 9832, KS C 9835:2019, KS X 3124:2020, KS X 3126:2020, LP002, QCVN 112:2017, RSP-100, RSS-102, RSS-247, RSS-GEN, UL 2043, UL 60950-1, UL 62368-1 Third Edition, UL Class III, VCCI-CISPR 32:2016
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: 5 days
Service Activation: No
