Product Information

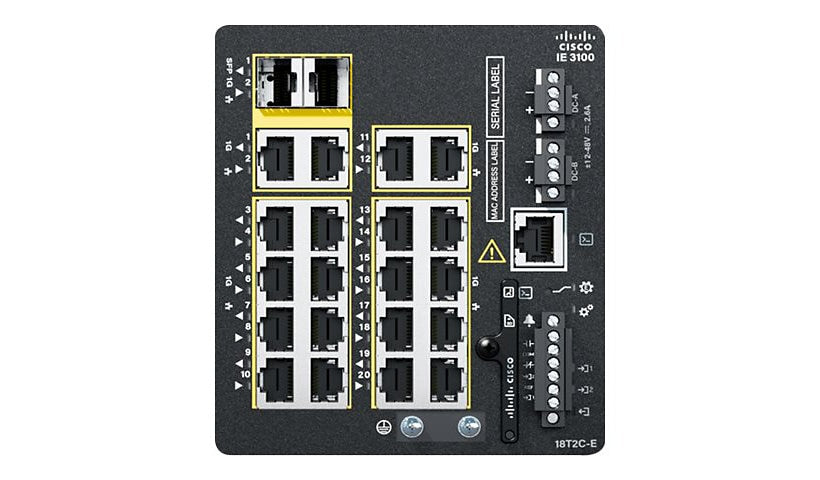

Cisco's Catalyst IE-3100-18T2C-E is a fanless rugged DIN rail switch with 18 Gigabit RJ-45 downlinks and two combo Gigabit uplinks, licensed with Network Essentials. It runs from -40 to 167 F on 12 to 48 V DC power and has two alarm inputs.
Key Features
- 18 x 10/100/1000 RJ-45 ports
- 2 x combo Gigabit uplinks
- -40 to 167 F operating range
- Fanless, DIN rail mount
- Network Essentials
- 12 to 48 V DC power
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: IE3100 Rugged Series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, Modbus, NETCONF, NTP, RESTCONF, RMON, SNMP, SNMP 1, SNMP 2, SNMP 3, Syslog, Telnet, TFTP, YANG
Routing Protocol: IGMP, IGMPv2, IGMPv3, Static IP routing, STP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Capacity: IGMP groups: 512, Indirect IPv4 routes: 2000, Queues: 8, STP instances: 128, VLANs supported: 256
MAC Address Table Size: 8000 entries
Features: Authentication, Authorization and Accounting (AAA), BOOTP support, CIP support, DHCP snooping, DHCPv6 guard, DiffServ support, Dynamic ARP Inspection (DAI), Embedded Event Manager (EEM), EtherChannel support, Fanless, Flow-Based SPAN (FSPAN), FTP support, IGMP snooping, IP Plug and Play (iPnP), L2TP support, Media Redundancy Protocol (MRP), MLD snooping, Network Edge Access Topology (NEAT), Per-VLAN Spanning Tree Plus (PVST+), Precision Time Protocol (PTP), PROFINET, Q-in-Q tunneling, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), Router advertisement guard, Secure Copy (SCP), Shock-resistant, Storm Control, Surge protection, Switched Port Analyzer (SPAN), TCP support, UDP support, Vibration-proof, VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3
Edition: Network Essentials
Connectivity
Ports: 20
Port Quantity: 18
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo Gigabit
Interface Provided: 1 x micro-USB Type B, 1 x serial (RS-232) RJ-45, 18 x 10/100/1000 Base-T RJ-45 downlink, 2 x alarm input, 2 x Gigabit LAN uplink
Expansion Slots: 1 (total) / 1 (free) x SD Memory Card
Power
Device Type: External power adapter
Power Consumption Operational: 36.7 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Provided Voltage: 12 - 48 volt
Memory and Processor
RAM Installed: 4 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: 642,050 Hours
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Built-in Devices: SD card reader
Dimensions and Weight
Height: 5 inch
Width: 4.3 inch
Depth: 5.1 inch
Weight: 2.8 lbs
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Compliant Standards: ANATEL, AS/NZS CISPR 24, AS/NZS CISPR 32 Class A, CNS 13438, CSA C22.2 No. 213, DNV, EN 50121-3-2, EN 50121-4, EN 55032 Class A, EN 60068-2-1, EN 60068-2-2, EN 60079-0, EN 60079-15, EN 60079-7, EN 61000-4-10, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131, EN 61131-2, EN 61326, EN 61373, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-64, IEC 60079-0, IEC 60079-15, IEC 60079-7, IEC 61850-3, IEC 62368-1, IEC/EN 61010-2-201, IEEE 1613, IP30, IP54, KN32, KN35, NEMA TS-2, RCM, RoHS, TEC, UL 121201, UL/CSA 60079-0, UL/CSA 60079-15, UL/CSA 61010-2-201, UL/CSA 62368-1, UL/CSA60950-1, VCCI Class A, WEEE, X.509 v3
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
