Product Information

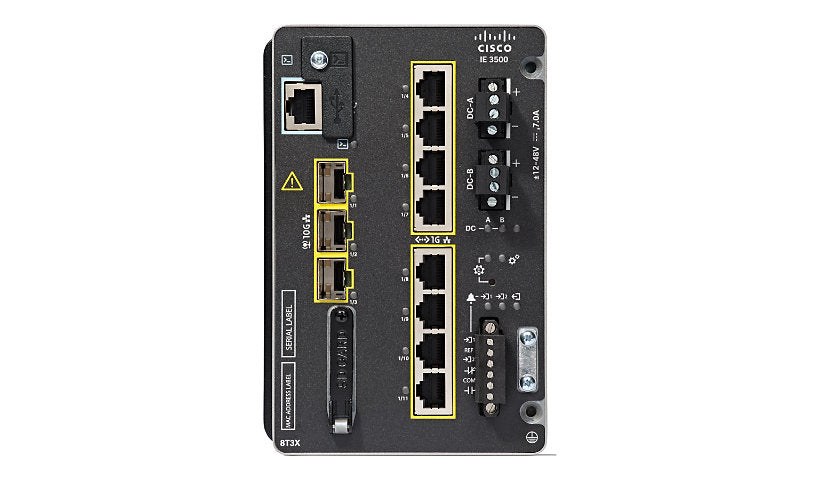

Cisco's IE-3500-8T3X-E is a fanless rugged DIN rail switch with eight Gigabit RJ-45 ports and three 1/10G SFP uplinks. It runs from -40 to 167 F, supports Layer 3 features with Network Essentials, and has alarm inputs and output for industrial sites.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 3 x 1/10G SFP uplinks
- -40 to 167 F operating range
- Fanless, DIN rail mount
- Layer 3, Network Essentials
- 2 alarm inputs, 1 alarm output
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco IE3500 Rugged Series
Model: IE-3500-8T3X
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: BOOTP, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, NETCONF, NTP, RESTCONF, RMON, SCP, SNMP 1, SNMP 2, SNMP 3, Syslog, Telnet, TFTP, YANG
Routing Protocol: BGP-6, IGMP, IGMPv2, IGMPv3, MLD, MSTP, OSPFv3, Policy-based routing (PBR), RIP, RSTP, Static IP routing, STP, VRF
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Capacity: Access Control Lists (PACL/VACL/RACL): 1536, Active VLANs: 1024, IGMP multicast groups: 1024, Indirect IPv4 routes: 7000, Indirect IPv6 routes: 1522, Queues: 8, STP instances: 128, Unicast MAC addresses: 24000, VLAN IDs: 4096
MAC Address Table Size: 24K entries
Jumbo Frame Support: 9198 bytes
Features: BPDU Guard, Cisco Discovery Protocol (CDP), DHCP server, DHCP snooping, Dynamic ARP Inspection (DAI), EtherChannel support, Fanless, Flexible NetFlow (FNF), Guest VLAN, IGMP filtering, IGMP querier, IP source guard, Media Access Control Security (MACsec), Media Redundancy Protocol (MRP), Multiple Registration Protocol (MRP), Per-VLAN Spanning Tree Plus (PVST+), Port Aggregation Protocol (PAgP) support, Precision Time Protocol (PTP), PROFINET, Q-in-Q tunneling, Quality of Service (QoS), Resilient Ethernet Protocol (REP), Secure Boot, Secure Unique Device Identification (SUDI), Switched Port Analyzer (SPAN), Syslog support, Time-Sensitive Networking (TSN) Frame-Preemption, Unidirectional Link Detection (UDLD), VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3, Voice VLAN
Connectivity
Ports: 11
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 3
Ports Type (2nd): 10 Gigabit SFP
Interface Provided: 1 x alarm output, 1 x serial (RS-232) RJ-45, 1 x USB 2.0, 1 x USB-C, 2 x alarm input, 3 x 1/10GBase-X SFP uplink, 8 x 10/100/1000 Base-T RJ-45
Expansion Slots: 1 (total) / 1 (free) x SD Memory Card
Power
Device Type: Internal power supply
Required Voltage: DC 12 - 48 volt
Power Consumption Operational: 37 watt
Electric Current Required: 7 A
Memory and Processor
RAM Installed: 8 GB
Flash Memory Installed: 5.1 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
MTBF: 518.082 Hours
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Built-in Devices: SD card reader
Dimensions and Weight
Height: 6 inch
Width: 4 inch
Depth: 5.3 inch
Weight: 4.7 lbs
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qbu, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3br, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32 Class A, CISPR 11 class A, CISPR 32 Class A, CISPR 35, CNS 15936 Class A, CSA 213, EN 300 386, EN 55032, EN 55035, EN 60079-0, EN 60079-7, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN 61850-3, FCC 47 CFR Part 15 Subpart B Class A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-78, IEC 60079-0, IEC 60079-7, IEC 61850-3, IEC 62368-1 CB Scheme, IECEx, IEEE 1613, IP30, KS C 9832 Class A, KS C 9835, REACH, RoHS, UL 121201, UL/CSA 60079-0, UL/CSA 61010-2-201, UL/CSA 62368-1, VCCI Class A, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
