Product Information

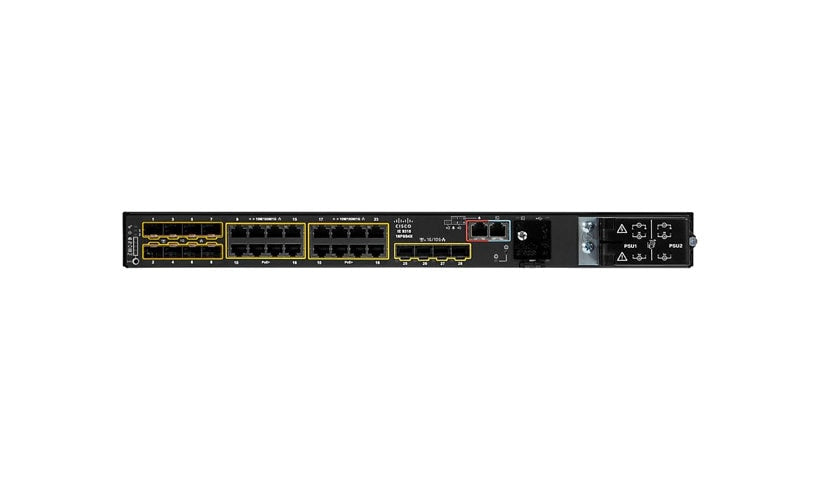

Cisco's Catalyst IE-9310-16P8S4X-A is a rugged rack mount industrial switch with 16 Gigabit PoE+ ports, eight 100/1000 SFP ports and four 1/10G SFP+ uplinks. It has a 480 W PoE budget, runs from -40 to 167 F with redundant power supplies, and includes alarm inputs and output.
Key Features
- 16 x 10/100/1000 RJ-45 PoE+ ports
- 8 x 100/1000 SFP ports
- 4 x 1/10G SFP+ uplinks
- 480 W PoE budget
- -40 to 167 F, redundant power
- 128 Gbps switching, alarm I/O
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Model: IE3300 Rugged Series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, HTTPS, MIB, NETCONF, RADIUS, RESTCONF, SNMP, Syslog, TACACS+, YANG
Routing Protocol: BGP, EIGRP, HSRP, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MSDP, OSPF, OSPFv3, Policy-based routing (PBR), STP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: TLS 1.3
Performance: Forwarding bandwidth: 64 Gbps, Forwarding rate: 95.23 Mpps, Switching bandwidth: 128 Gbps
Capacity: Access Control Lists (PACL/VACL/RACL): 1536, Active VLANs: 1024, Direct IPv4 routes: 8192, GRE tunnels: 10, IGMP multicast groups: 1000, Indirect IPv4 routes: 7000, Indirect IPv6 routes: 1522, IPv4 to SGT binding: 10000, Multiple Spanning Tree Protocol instances: 128, Queues per port: 8, SGT/DGT policies: 2000, Switched virtual interfaces (SVIs): 984, SXP Sessions: 200, Unicast MAC addresses: 24000, VLAN IDs: 4096
Features: Authentication, Authorization and Accounting (AAA), DHCP snooping, DHCPv6 guard, DiffServ Code Point (DSCP) support, Duplicate Address Detection (DAD), Dynamic ARP Inspection (DAI), Embedded Event Manager (EEM), EtherChannel support, Fanless, Flexible NetFlow (FNF), IGMP snooping, IP source guard, IPv6 support, Low-latency queuing (LLQ), Management Information Base (MIB), Media Redundancy Protocol (MRP), MLD snooping, MQC, Network Timing Protocol (NTP), Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree Plus (PVST+), Policy based routing, Precision Time Protocol (PTP), Priority Queuing (PQ), PROFINET, Protocol Independent Multicast (PIM), Q-in-Q tunneling, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid PVST (RPVST), Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), Routing Information Protocol (RIP), Security Group Access Control List (SGACL), Spanning Tree Protocol (STP) support, Static routing, Storm Control, Switched Port Analyzer (SPAN), Syslog support, Tunneling, VLAN Trunking Protocol (VTP) v.2
Connectivity
Ports: 28
Port Quantity: 16
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 8
Ports Type (2nd): 100/1000 SFP
Ports (3rd) Quantity: 4
Interface Provided: 1 x alarm output, 1 x micro-USB, 1 x serial (RS-232) RJ-45, 1 x USB 2.0, 16 x 10/100/1000 Base-T RJ-45 PoE+ - 60 W, 4 x 1/10GBase-X SFP+ uplink, 4 x alarm input, 8 x 100/1000 SFP
Expansion Slots: 1 (total) / 1 (free) x SD Memory Card
Power Over Ethernet (PoE): PoE+
QSFP Slots: 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power
Power Consumption Operational: 105 watt
PoE Budget: 480 watt
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 8 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
MTBF: 265,827 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Built-in Devices: SD card reader
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 14 inch
Weight: 10.6 lbs
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32 Class A, CB, CISPR 11 class A, CISPR 24, CISPR 32 Class A, CISPR 35, CSA 213, CSA 22.2 No. 142, EN 300 386, EN 301 489-1, EN 301 489-19, EN 303 413, EN 50121-4, EN 60068-2-1, EN 60068-2-2, EN 60079-0, EN 60079-7, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-10, EN 61000-4-11, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61163, EN 61326, EN55024, FCC CFR 47 Part 15 Class A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-31, IEC 60068-2-32, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-64, IEC 60079-0, IEC 60079-7, IEC 60950-1, IEC 61010-2-201, IEC 61850-3, IEC 62368-1, IEEE 1613, IP30, KS C 9832, KS C 9835, NOM, NOM-019-SCFI, Plug and Play, UL 121201, UL/CSA 60079-0, UL/CSA 60079-7, UL/CSA 61010-2-201, UL/CSA60950-1, UL/CUL 62368-1, VCCI Class A, WEEE, X.509 v3
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
