Product Information

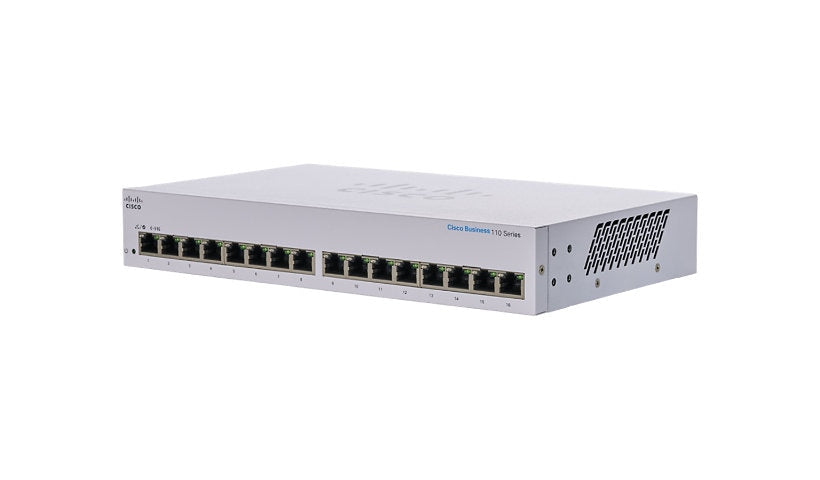

With sixteen Gigabit ports and 32 Gbps of capacity, the Cisco CBS110-16T-NA is a simple Business 110 series switch for growing offices. It runs fanless on an internal power supply and mounts on a desk, rack or wall using the included kit.
Key Features
- 16 x Gigabit RJ-45 ports
- 32 Gbps switching capacity
- Unmanaged, plug and play
- Fanless, internal power supply
- Desktop, rack or wall mount (kit included)
- Kensington lock slot
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Business 110 Series
Model: 110-16T
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: Canada, Chile, Colombia, Latin America, Mexico, United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Forwarding performance (64-byte packet size): 23.8 Mpps, Switching capacity: 32 Gbps
Capacity: Buffer capacity (MB): 2
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, Energy Efficient Ethernet, Fanless, Flow control, Head-of-line (HOL) blocking, Loopback detection, Quality of Service (QoS), Security slot (Kensington security lock compatible), Weighted Round Robin (WRR)
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 11.53 watt
Memory and Processor
Processor Brand: ARM
Clock Speed: 400 megahertz
RAM Installed: 128 megabyte
Flash Memory Installed: 16 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.7 inch
Width: 11 inch
Depth: 6.7 inch
Weight: 34.21 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: CSA 22.2, FCC CFR47 Part 15 A, FCC Class B certified, UL 60950
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
