Product Information

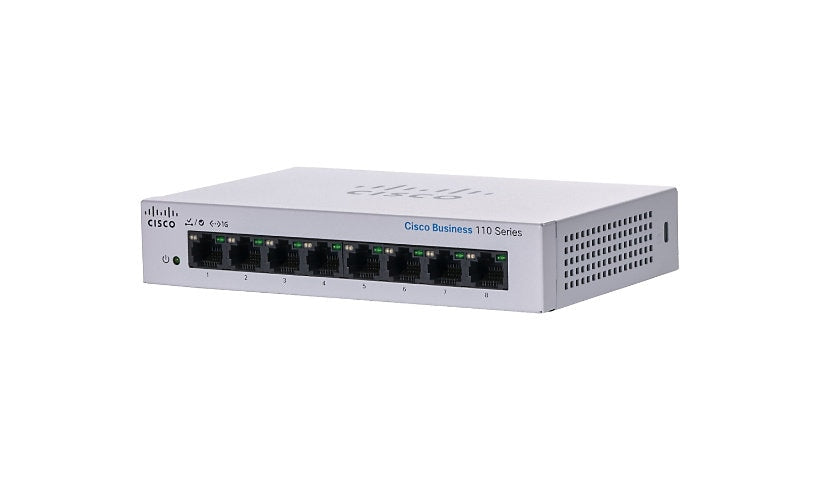

Cisco's CBS110-8T-D-NA is a Business 110 series unmanaged switch with eight Gigabit ports and 16 Gbps of capacity. It runs fanless and can sit on a desk, go in a rack or hang on a wall with the mounting kit, and it has a Kensington lock slot.
Key Features
- 8 x Gigabit RJ-45 ports
- 16 Gbps switching capacity
- Unmanaged, plug and play
- Fanless design
- Desktop, rack or wall mount (kit)
- Kensington lock slot
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Business 110 Series
Model: 110-8T-D
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Forwarding performance (64-byte packet size): 11.9 Mpps, Switching capacity: 16 Gbps
Capacity: Buffer capacity (MB): 2
MAC Address Table Size: 8K entries
Jumbo Frame Support: 9216 bytes
Features: Auto-uplink (auto MDI/MDI-X), Cable Diagnostics Function, Energy Efficient Ethernet, Fanless, Flow control, Head-of-line (HOL) blocking, Loopback detection, Quality of Service (QoS), Security slot (Kensington security lock compatible), Weighted Round Robin (WRR)
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Interface Provided: 8 x 10/100/1000 Base-T RJ-45
Power
Power Consumption Operational: 4.13 watt
Output Current: 1 ampere
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% (non-condensing)
MTBF: 2,066,844 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.2 inch
Width: 6.3 inch
Depth: 4.1 inch
Weight: 15.17 ounce
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: CSA 22.2, FCC CFR47 Part 15 A, FCC Class B certified, UL 60950
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime, Technical support - phone consulting - 1 year, Technical support - web support - 1 year
