Product Information

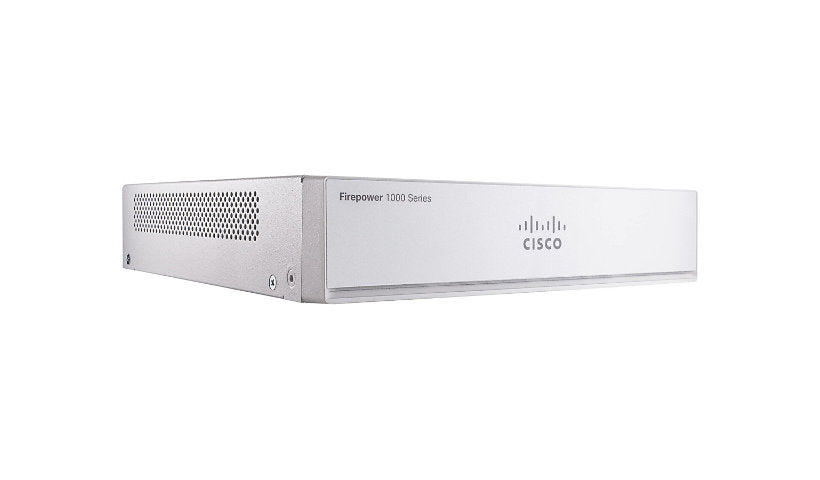

The Cisco Firepower 1010 ASA is a desktop firewall running ASA software, rated at 2 Gbps firewall (UDP), 1.4 Gbps multiprotocol firewall and 500 Mbps IPsec VPN, with up to 100,000 concurrent connections, 25,000 new connections per second and 75 VPN peers. It has eight RJ-45 data ports, a Gigabit management port, an RJ-45 serial console, USB 3.0 and a 200 GB drive. Cisco lists a 90 day limited warranty for it.
Key Features
- 2 Gbps firewall (UDP)
- 1.4 Gbps multiprotocol
- 100,000 connections
- 8 x RJ-45 data ports
- 200 GB storage
- Desktop form factor
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco FirePOWER
Model: 1010 ASA
Product Type: Firewall
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Capacity: Concurrent connections: 100000, New connections per second: 25000, VPN peers: 75
Network Device: Firewall throughput (UDP): 2 Gbps, IPsec VPN throughput (450B UDP L2L test): 500 Mbps, Multiprotocol firewall throughput: 1.4 Gbps
Features: Fanless
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x serial - RJ-45, 1 x USB 3.0 - Type A, 8 x - RJ-45
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Memory and Processor
Hard Drive Capacity: 200 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 7.8 inch
Depth: 8.1 inch
Weight: 3 lbs
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/108/EC, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN22 Class A, KN24, TCVN 7189, TVCN 7317, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 90 Day
Service & Support Details: Limited warranty - advance hardware replacement - 90 days - response time: 10 days
Service Activation: No
