Product Information

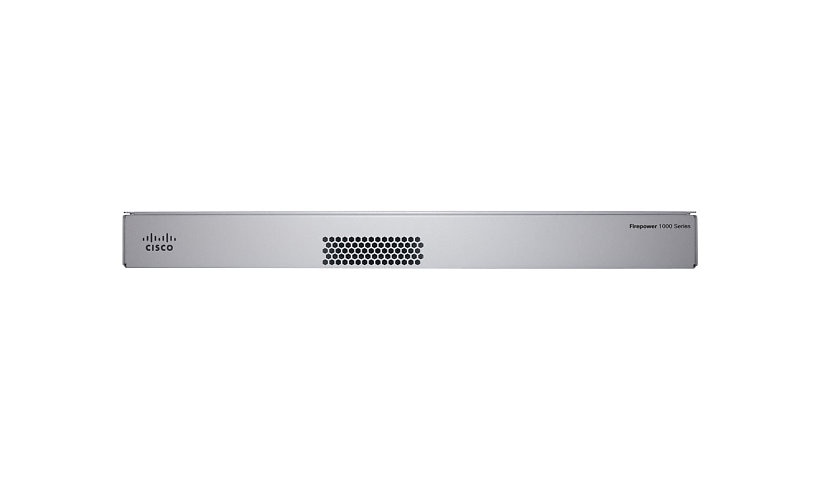

The Cisco Firepower 1120 ASA is a 1U firewall running ASA software, rated at 4.5 Gbps firewall (UDP), 2.5 Gbps multiprotocol firewall and 1 Gbps IPsec VPN, with up to 200,000 concurrent connections, 75,000 new connections per second, 150 VPN peers and 2 security contexts. It has eight RJ-45 data ports, four SFP ports, a Gigabit management port, an RJ-45 serial console, USB 3.0 and a 200 GB drive.
Key Features
- 4.5 Gbps firewall (UDP)
- 1 Gbps IPsec VPN
- 200,000 connections
- 8 x RJ-45 + 4 x SFP
- 200 GB storage
- 1U rack mount
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco FirePOWER
Model: 1120 ASA
Product Type: Firewall
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Capacity: Concurrent connections: 200000, New connections per second: 75000, Security contexts: 2, VPN peers: 150
Network Device: Firewall throughput (UDP): 4.5 Gbps, IPsec VPN throughput (450B UDP L2L test): 1 Gbps, Multiprotocol firewall throughput: 2.5 Gbps
Features: 1 fan
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x serial - RJ-45, 1 x USB 3.0 - Type A, 4 x - SFP (mini-GBIC), 8 x - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Memory and Processor
Hard Drive Capacity: 200 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 10.6 inch
Weight: 8 lbs
Included Items
Included Accessories: Mounting brackets
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/108/EC, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN22 Class A, KN24, TCVN 7189, TVCN 7317, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
