Product Information

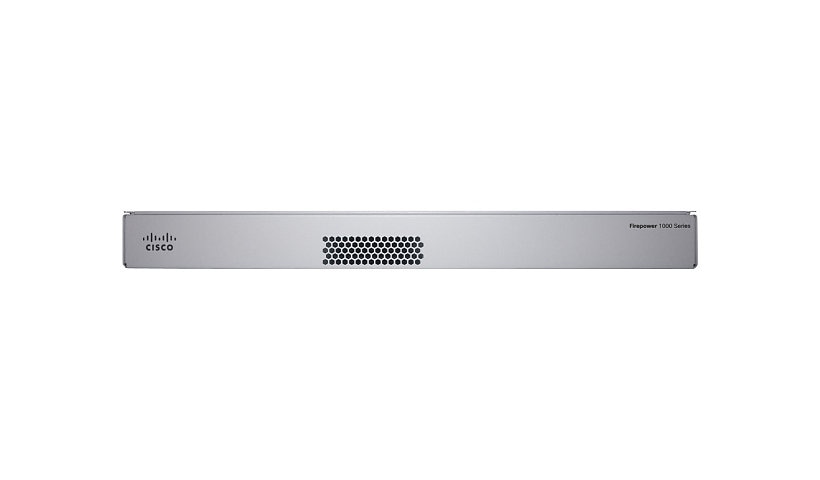

The Cisco Firepower 1120 is a 1U threat focused next generation firewall for branch offices up to the internet edge. It is rated at 1.5 Gbps firewall with AVC and IPS (1024 byte), 550 Mbps at 450 byte and 1 Gbps IPsec VPN, with up to 200,000 concurrent sessions and 15,000 new connections per second with AVC. It has eight RJ-45 data ports, four SFP ports, a Gigabit management port, an RJ-45 serial console, USB 3.0 and a 200 GB drive.
Key Features
- 1.5 Gbps FW + AVC + IPS
- 1 Gbps IPsec VPN
- 200,000 sessions with AVC
- 8 x RJ-45 + 4 x SFP
- 200 GB storage
- 1U rack mount
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco FirePOWER
Model: 1120 Next-Generation Firewall
Product Type: Firewall
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Capacity: Maximum concurrent sessions with AVC: 200000, New connections per second with AVC: 15000
Network Device: Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (1024B): 1.5 Gbps, Firewall and Application Visibility and Control (AVC) and Intrusion Prevention System (IPS) throughput (450B): 550 Mbps, Firewall and Application Visibility and Control (AVC) throughput (1024B): 1.5 Gbps, Firewall and Application Visibility and Control (AVC) throughput (450B): 550 Mbps, IPSec VPN throughput (1024B TCP w/Fastpath): 1 Gbps, NGIPS throughput (1024B): 1.5 Gbps, NGIPS throughput (450B): 550 Mbps, Transport Layer Security (TLS) throughput: 700 Mbps
Features: 1 fan
Software Type: Cisco Threat Defense 6.4
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x serial - RJ-45, 1 x USB 3.0 - Type A, 4 x - SFP (mini-GBIC), 8 x - RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Memory and Processor
Hard Drive Capacity: 200 GB
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.2 inch
Depth: 10.6 inch
Weight: 8 lbs
Included Items
Included Accessories: Mounting brackets
Certifications and Listing
Compliant Standards: AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/108/EC, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN22 Class A, KN24, TCVN 7189, TVCN 7317, UL 60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
