Product Information

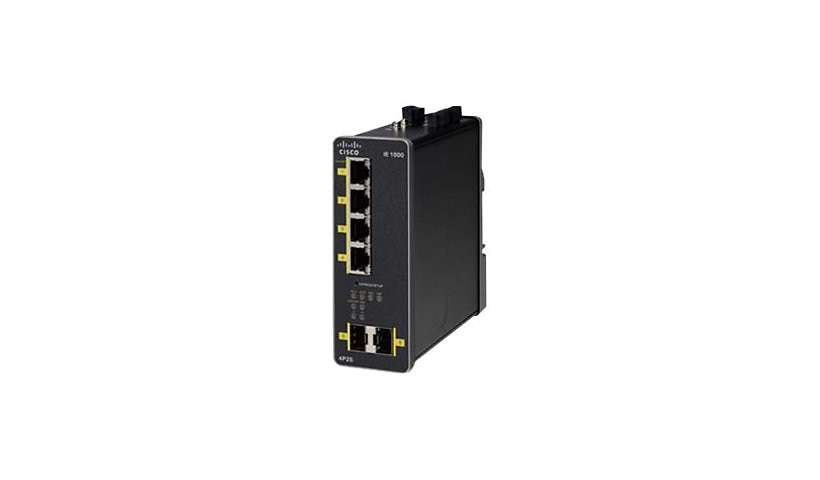

Cisco's Industrial Ethernet IE-1000-4P2S-LM is a compact rugged DIN rail switch with four Gigabit PoE+ ports and two Gigabit SFP uplinks. It runs on DC power from -40 to 158 F and is built for machine builders and OT users who need simple setup.
Key Features
- 4 x 10/100/1000 RJ-45 PoE+ ports
- 2 x Gigabit SFP uplinks
- -40 to 158 F operating range
- DIN rail mount, DC power
- Managed, DHCP snooping, IGMP snooping
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Industrial Ethernet
Model: 1000 Series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, RMON, SNMP, SNMP 2, SNMP 3, SSH
Routing Protocol: IGMP, IGMPv2
Authentication Method: RADIUS, Secure Shell (SSH)
Features: BOOTP support, Bridge protocol data unit (BPDU), Class of Service (CoS), DHCP server, DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, Full duplex mode, IGMP snooping, Internet Control Message Protocol (ICMP), LLDP support, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Port Security, Spanning Tree Protocol (STP) support, Static IP mode, Syslog support
Connectivity
Ports: 6
Port Quantity: 4
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1000Base-X SFP (uplink)
Interface Provided: 2 x 1000Base-X SFP, 4 x 1000Base-T RJ-45
Power Over Ethernet (PoE): PoE+
Power
Power Consumption Operational: 140.4 watt
Memory and Processor
RAM Installed: 128 megabyte
Flash Memory Installed: 160 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 374,052 Hours
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Dimensions and Weight
Height: 5 inch
Width: 5.3 inch
Depth: 1.8 inch
Weight: 27.16 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: ANATEL, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, AS/NZS CISPR 24, AS/NZS CISPR22:2004 Class A, CB, CEM, China RoHS, CISPR 11 class A, CISPR 22 Class A, EAC, EMC, EMI, EN 50581, EN 55016-1-1 Class A, EN 55016-1-4 Class A, EN 55016-2-3 Class A, EN 61131-2, EN 61326-1, EN55022, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-47, IEC 60068-2-56, IEC 60068-2-6, IEC 60068-2-64, IEC/EN 61000-4-29, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4, IEC/EN/EN61000-4-2, IEC60950-1, IP30, KCC, NAL, NOM, NOM-001-SCFI-1993, RCM, RoHS, UL/CSA/IEC/EN 61010-2-201, UL/CSA60950-1, VCCI Class A, WEEE
