Product Information

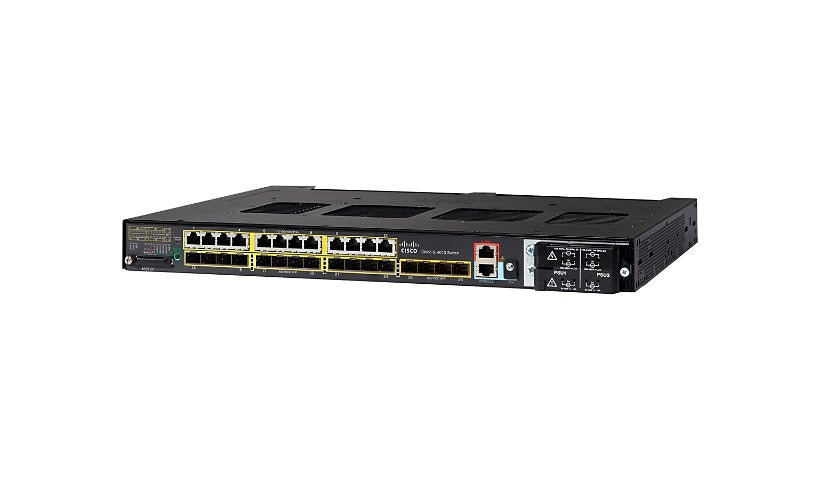

Cisco's Industrial Ethernet IE-4010-16S12P is a rugged Layer 2/3 switch with 12 Gigabit PoE+ ports, 12 Gigabit SFP ports and four SFP uplinks. It runs Cisco IOS LAN Base, offers 56 Gbps of switching bandwidth and IEEE 1588 CIP Sync, includes a 1 GB SD card and is TAA compliant.
Key Features
- 12 x 10/100/1000 RJ-45 PoE+ ports
- 12 x Gigabit SFP ports
- 4 x SFP uplinks
- 56 Gbps switching bandwidth
- IOS LAN Base, CIP Sync (IEEE 1588)
- 1 GB SD card included, TAA compliant
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Industrial Ethernet
Model: 4010 Series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON, RMON 2, SCP, SNMP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Routing Protocol: IGMP, IGMPv2, IGMPv3, Static IPv4 routing
Authentication Method: RADIUS, TACACS
Performance: Forwarding bandwidth: 28 Gbps, Switching bandwidth: 56 Gbps
Capacity: IGMP groups: 1000, NAT translations: 128, Virtual interfaces (VLANs): 1000
MAC Address Table Size: 16K entries
Features: 802.1x authentication, Bidirectional Forwarding Detection (BFD), BOOTP support, Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588), Class of Service (CoS), DHCP server, DHCP snooping, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic ARP protection, EtherNet/IP CIP Messaging, Flex Link support, IGMP filtering, IGMP snooping, IP source guard, IPv6 support, LLDP support, MAC Address Notification, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, NAT support, Parallel Redundancy Protocol (PRP), Precision Time Protocol (PTP), PROFINET v2, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), SmartPort technology, Spanning Tree Protocol (STP) support, Storm Control, Syslog support, Tunneling, Uni-Directional Link Detection (UDLD), VLAN support
Software Type: Cisco IOS LAN Base
Connectivity
Ports: 28
Port Quantity: 12
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10/100/1000/SFP (uplink)
Ports (3rd) Quantity: 12
Interface Provided: 1 x console RJ-45, 1 x mini-USB Type B, 12 x 1000Base-T RJ-45, 12 x 1000Base-TX SFP, 4 x SFP uplink
Expansion Slots: 1 (total) / 0 (free) x SD Memory Card
QSFP Slots: 10/100/1000/SFP
Memory and Processor
RAM Installed: 1 GB
Flash Memory Installed: 128 megabyte
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.8 inch
Width: 17.5 inch
Depth: 14 inch
Weight: 12.74 lbs
Included Items
Included Accessories: 1 GB SD card
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 1613, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI CNS 13438 Class A, CB, China RoHS, CISPR 11 class A, CISPR 22 Class A, CISPR 24, CSA 22.2 No. 142, EN 50121-3-2, EN 50121-4, EN 61000-4-11, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326, EN 61373, EN50155, EN55022 Class A, EN55024, FIPS 140-2, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-64, IEC 60529 IP30, IEC 61163, IEC 61850-3, IEC/UL/CSA/EN 60950-1, ISO 9223, KN22, NOM-019-SCFI-1998, RoHS, UL 508, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
