Product Information

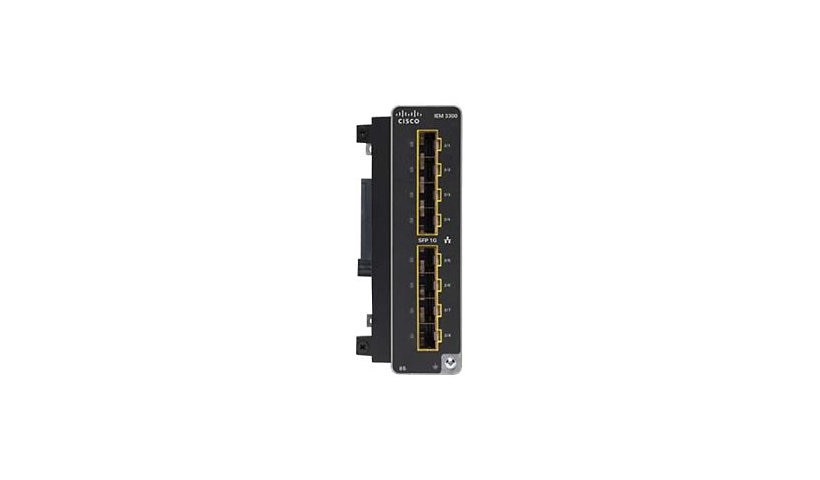

Cisco's IEM-3300-8S= adds eight Gigabit SFP slots to a Catalyst IE3300 Rugged Series switch for extra fiber links. It mounts on a DIN rail, handles -40 to 158 °F and draws about 13 W. This is an expansion module, not a standalone switch.
Key Features
- 8 x Gigabit SFP slots
- For Catalyst IE3300 Rugged Series
- Operating range -40 to 158 °F
- DIN rail mount
- About 13 W power use
Product Information
Brand: Cisco
Manufacturer: Cisco Systems
Product Line: Cisco Catalyst
Product Type: Expansion module
Compatibility Specs: Cisco Catalyst IE3300 Rugged Series
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Cable Type: Ethernet 1000Base-T
Features: Bridge protocol data unit (BPDU), Cisco Gigabit EtherChannel, DHCP server, DHCP snooping, Dynamic ARP Inspection (DAI), IGMP filtering, IGMP querier, LLDP support, MAC address filtering, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Per-VLAN Spanning Tree Plus (PVST+), Quality of Service (QoS), RADIUS support, Rapid Reconfiguration of Spanning Tree (RSTP), Remote Switch Port Analyzer (RSPAN), Secure Copy (SCP), SmartPort technology, SNMP support, SSH support, Syslog support, Uni-Directional Link Detection (UDLD), VLAN Trunking Protocol (VTP) v.2, VLAN Trunking Protocol (VTP) v.3
Connectivity
Port Quantity: 8
Interface Provided: 8 - SFP (mini-GBIC)
Network & Adapter Ports: SFP (mini-GBIC)
Power
Power Consumption Operational: 13 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
MTBF: 6,810,960 Hours
Physical Characteristics
Form Factor: DIN Rail Mountable
Dimensions and Weight
Height: 6 inch
Width: 2.4 inch
Depth: 5.3 inch
Weight: 32.94 ounce
Certifications and Listing
Compliant Standards: IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Compliant Standards: AS/NZS CISPR 32 Class A, CISPR 11 class A, CISPR 32 Class A, CISPR 35, CNS 13438 Class A, EN 300 386, EN 50121-4, EN 55032, EN 60068-2-52, EN 60068-2-60, EN 60079-0, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-78, IEC 60079-0, IEC 60950-1, IEC/EN 61010-2-201, IEEE 1613, IP30, KN32 Class A, KN35, MIL-STD-810, UL 121201, UL 62368-1, UL/CSA 60079-0, UL/CSA 61010-2-201, UL/CSA60950-1, VCCI Class A
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Service Activation: No
