Product Information

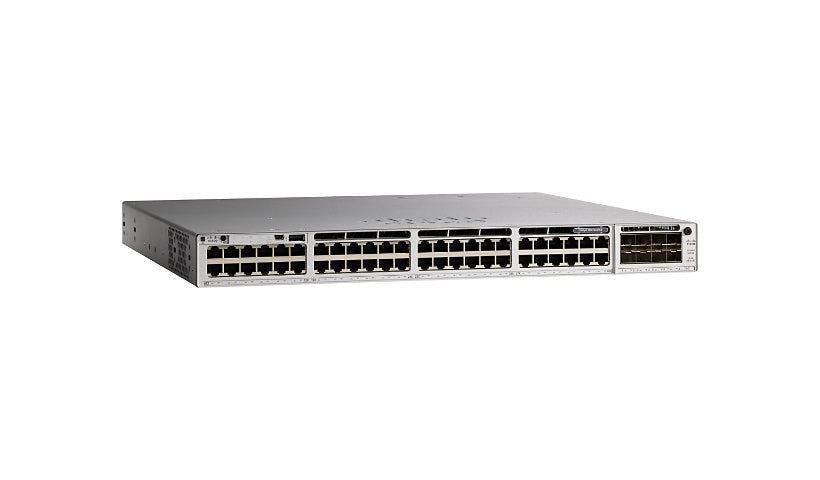

The Cisco Meraki Catalyst C9300-48U-M is a cloud-managed stackable switch with 48 Gigabit UPOE ports that can each deliver up to 60 W. It provides an 822 W PoE budget, 480 Gbps of stacking bandwidth and StackPower, managed through the Meraki dashboard. One hot-plug power supply is installed.
Key Features
- 48 x 10/100/1000 RJ-45 UPOE ports, up to 60 W
- 822 W PoE budget
- Stacks up to 8 units, 480 Gbps stacking
- Cloud managed (Meraki), Layer 3
- 256 Gbps switching capacity
- 1 hot-plug power supply installed
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki Catalyst
Model: 9300-48U
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, IPv4, IPv6, SNMP, Syslog
Routing Protocol: IGMP, MSTP, OSPFv2, RSTP, Static IP routing, STP, VRRP
Authentication Method: RADIUS
Performance: Forwarding rate: 190.48 Mpps, Stacking bandwidth: 480 Gbps, Switching capacity: 256 Gbps
Capacity: Member ports per aggregated link: up to 8, QoS queues: 8, VLANs with trunking: 4094
MAC Address Table Size: 32000 entries
Stackable: Stackable
Features: Access Control List (ACL) support, Adaptive policy, Broadcast Storm Control, Cisco Discovery Protocol (CDP), Cisco StackPower technology, DHCP relay, DHCP server, DHCP snooping, DSCP to CoS Mutation, Dynamic ARP Inspection (DAI), Firmware upgradable, Hot swappable 3 fans, MAC Access Bypass (MAB), Network diagnostics, Per-VLAN Spanning Tree (PVST), Port mirroring, Protocol Independent Multicast (PIM), Push notification, Quality of Service (QoS), Rapid PVST (RPVST), Role-Based Access Control (RBAC), Sticky MAC, STP BPDU Guard, STP loop guard, STP Root Guard, Uni-Directional Link Detection (UDLD), Usage statistics, VLAN support, VLAN trunking, Zero-touch provisioning (ZTP)
Max Units In A Stack: 8
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (UPOE)
Interface Provided: 1 x management, 1 x USB Type A, 1 x USB Type B console, 2 x network stack device, 48 x 1000Base-T RJ-45 UPOE - 60 W
Expansion Slots: 1 (total) / 1 (free) x expansion slot
Power Over Ethernet (PoE): UPOE
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Provided: 1100 watt
PoE Budget: 822 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS Platinum
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 227,410 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Status
Built-in Devices: 3 x fans
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 19.2 inch
Weight: 17.02 lbs
Certifications and Listing
Compliant Standards: AN/NZS 60950.1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR 47 Part 15 Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3bt
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advanced replacement - lifetime - response time: next business day
