Product Information

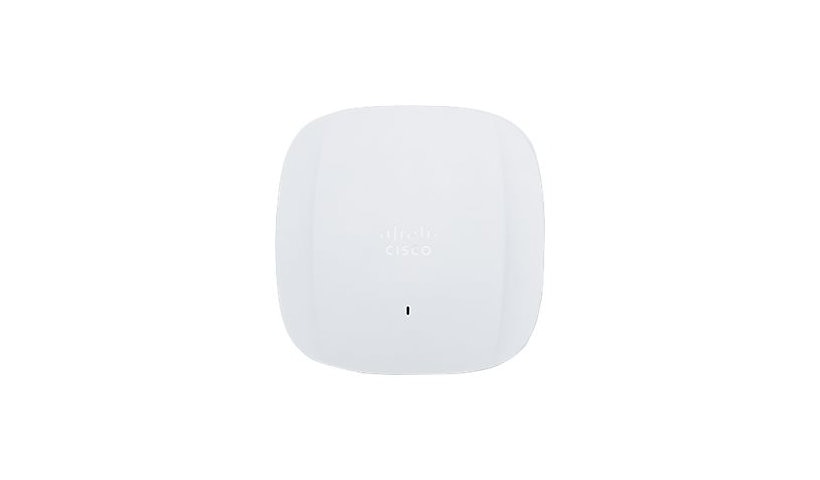

The Cisco Meraki CW9162I-MR is a compact indoor Wi-Fi 6E access point with 2x2:2 MU-MIMO on 2.4, 5 and 6 GHz for up to 3.9 Gbps aggregate. It offers full time scanning, BLE beaconing, a 2.5G uplink powered by UPOE or PoE+, and USB.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- Up to 3.9 Gbps, 2x2:2 MU-MIMO
- 2.5G RJ-45, UPOE/PoE+
- BLE beaconing, USB 2.0
- Meraki cloud managed
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki Catalyst
Model: 9162
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: FIPS 140-2
Data Transfer Rate: 3.9 GBps
Line Coding Format: 1024 QAM
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax (Wi-Fi 6E)
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
Internet of Things (IoT) Compatible: Yes
Antenna Form Factor: Internal
Features: 2x2:2 MU-MIMO technology, Bluetooth Low Energy Beaconing, BSS Coloring, Firmware upgradable, IPv6 support, Maximum Ratio Combining (MRC), Packet aggregation, SU-MIMO technology, Target Wait Time (TWT), Tri-Band, Wi-Fi personal network (WPN), Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x 2.5 GBase-T - RJ-45, 1 x USB 2.0 - Type A
Power Over Ethernet (PoE): UPOE / PoE+
Power
Power Consumption Operational: 4.5 watt
Physical Characteristics
Form Factor: Internal
Dimensions and Weight
Height: 1.7 inch
Width: 7.9 inch
Depth: 7.9 inch
Weight: 32.8 ounce
Certifications and Listing
Compliant Standards: WFA
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
