Product Information

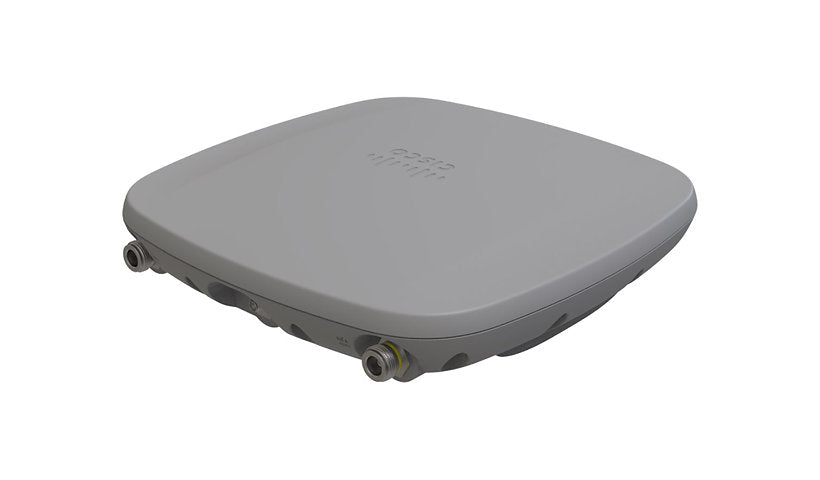

The Cisco Meraki Catalyst CW9163E-MR is a rugged outdoor Wi-Fi 6E access point with tri-band 2x2:2 radios and four N-type connectors for external antennas. It adds BLE, Zigbee and Thread IoT, onboard GPS to support 6 GHz AFC, a 5G multi-gig PoE+ port and works from -40 to 149 °F. It is managed from the Meraki Dashboard.
Key Features
- Wi-Fi 6E tri-band, 2x2:2
- 4 x N-type antenna connectors
- 100M-5G RJ-45 (PoE+)
- BLE, Zigbee, Thread IoT
- Outdoor, -40 to 149 °F
- Meraki Dashboard managed
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki Catalyst
Model: 9163E
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Bluetooth 5.1 LE, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: HTTP
Authentication Method: EAP-FAST, EAP-SIM, Extensible Authentication Protocol (EAP), MS-CHAP, MS-CHAP v.2
Encryption: AES, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, PEAPv1, WPA2-Enterprise, WPA2-Personal, WPA3, WPA3-Enhanced Open, WPA3-Personal
Line Coding Format: 1024 QAM, OFDMA
Capacity: Spatial streams: 12
Wireless LAN: 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.1 LE
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Spread Spectrum Method: OFDMA
IoT Communications Technology: Bluetooth Low Energy (LE), Thread, Zigbee
Internet of Things (IoT) Compatible: Yes
Features: 2x2:2 MU-MIMO technology, Beamforming technology, BSS Coloring, Cisco Trust Anchor module, CleanAir Pro technology, Client Steering, Cyclic shift diversity (CSD), Dynamic Frequency Selection (DFS), Image signing, Maximum Ratio Combining (MRC), Packet aggregation A-MPDU, Packet aggregation A-MSDU, PowerSave, Secure Boot, Self-identifiable antennas (SIA) support, Target Wake Time (TWT), Tri-Band
Software Type: Meraki Dashboard
Connectivity
Interface Provided: 1 x 100M/1G/2.5/5 Gigabit Ethernet (PoE+) - RJ-45, 1 x management - RJ-45, 1 x USB, 4 x antenna - N connector
Power Over Ethernet (PoE): PoE+
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 1 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 149 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Status
Built-in Devices: GPS
Dimensions and Weight
Height: 2.5 inch
Width: 9.6 inch
Depth: 9.6 inch
Weight: 3.31 lbs
Certifications and Listing
Compliant Standards: 47 CFR Part 2.1091, AN/NZS 60950.1, ARPANSA, AS/NZS 2772.2, AS/NZS 4268:2017, AS/NZS 62368.1, AS/NZS CISPR32:2015 Class B, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-22, CAN/CSA-C22.2 No. 62368-1, CISPR 24:2010, CISPR 32:2015, CNS 13438, EN 301 489-1 V2.2.3 (2019-11), EN 301 489-17 V3.2.4 (2020-09), EN 301 893 V2.1.1, EN 50385:2017, EN 55024:2010 + AMD 1, EN 55032:2015/A11:2020, EN 55035:2017, EN 60950-1, EN 60950-22, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 62368-1, ETSI EN 300 328 V2.2.2 (2019-07), FCC CFR 47 Part 15 Class B, FCC CFR 47 Part 15C, FCC CFR Part 15.247, FCC CFR Part 15.407, FCC CFR47 Part 1 1.1310, ICES-003 issue 7 Class B, IEC 60950-1, IEC 60950-22, IEC 62368-1, KS C 9610-3-2:2020, KS C 9610-3-3:2020, KS C 9832:2019, KS C 9835:2019, KS X 3124:2020, KS X 3126:2020, LP0002:2020, QCVN, QCVN 112:2017, QCVN 118:2019, QCVN 18:2014, QCVN 54:2020, QCVN 65:2013, RSP-100, RSS-102:2015, RSS-247, RSS-GEN, VCCI-CISPR 32:2016, WEEE
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.15.1, IEEE 802.15.4, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - replacement - 1 year - response time: 10 days
Service Activation: No
