Product Information

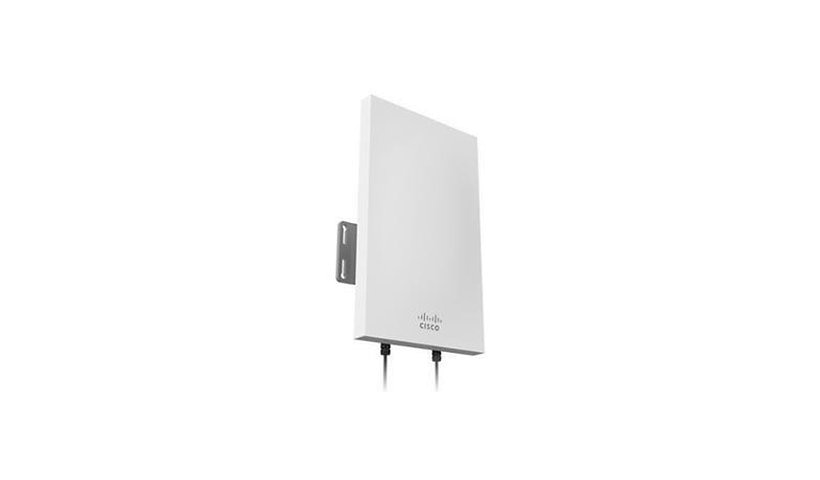

The Cisco Meraki MA-ANT-27 is a 2x2 MIMO dual band sector antenna with 9 dBi at 2.4 GHz and 12 dBi at 5 GHz, for focused coverage with Meraki APs that use N-type connectors. It has two N-type connectors, is rated -40 to 158 °F and includes a wall or pole mounting kit and cable.
Key Features
- Dual band 2.4 / 5 GHz
- 9 / 12 dBi sector
- 2x2 MIMO
- 2 x N-type
- -40 to 158 °F
- Wall / pole kit included
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: Dual-Band Sector Antenna
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Antenna Gain: 12 dBi, 9 dBi
Antenna Placement: Indoor, Outdoor, Pole mount, Wall-mountable
Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.875 GHz
Directivity: Directional
Connectivity
Connector Provided: 2 x N-Series connector
Technical Information
Horizontal Beamwidth: 65°, 86°
Vertical Beamwidth: 18°, 34°
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Physical Characteristics
Mounting Kit: Included
Materials: Plastic
Dimensions and Weight
Height: 9.1 inch
Width: 5.5 inch
Depth: 1.9 inch
Weight: 22.22 ounce
Included Items
Package Content: Antenna cable
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
