Product Information

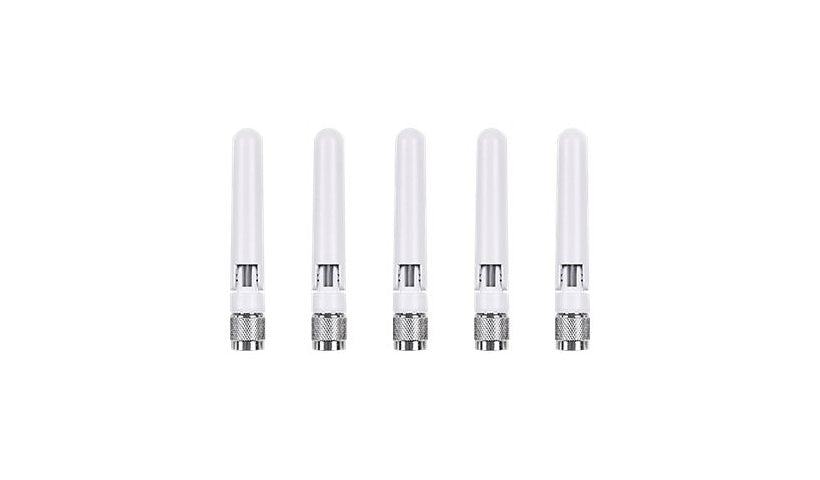

The Cisco Meraki MA-ANT-3-B5 is a bendable dual band dipole antenna for the MR42E access point. It gives 360 degree coverage with a 40 degree vertical beam, 3 dBi at 2.4 to 2.5 GHz and 5.7 dBi at 5.15 to 5.875 GHz, which suits low ceilings and basic coverage in schools and hotels. It has an RP-TNC connector and ABS body. The quick specs list this part as a pack of 5, so please confirm the quantity.
Key Features
- Dual band dipole antenna
- 3 dBi 2.4 GHz, 5.7 dBi 5 GHz
- 360 degree omni
- RP-TNC connector
- For Meraki MR42E
- Listed as pack of 5
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Product Type: Antenna
Category of Accessory: Antennas
Compatibility Specs: Cisco Meraki MR42E
Packaged Quantity: 5
Color Category: White
Network and Communication
Antenna Gain: 3 dBi (for 2.4 GHz), 5.7 dBi (for 5 GHz)
Antenna Placement: Indoor
Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.875 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x RP-TNC
Technical Information
Antenna Form Type: Dipole
Horizontal Beamwidth: 360°
Vertical Beamwidth: 40°
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 3.5 inch
Width: 0.6 inch
Weight: 0.71 ounce
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
