Product Information

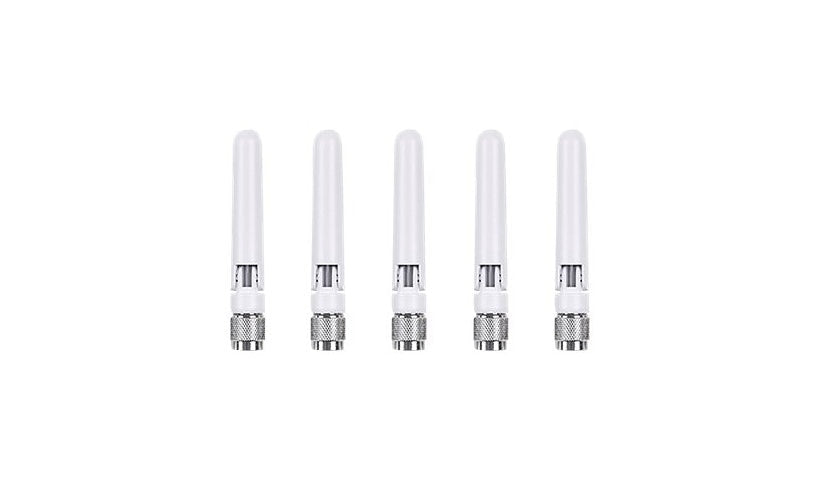

The Cisco Meraki MA-ANT-3-B6 is a bendable dual band dipole antenna for the MR53E access point. It gives 360 degree omni coverage with a 40 degree vertical beam and 3 dBi at 2.4 to 2.5 GHz and 5.7 dBi at 5.15 to 5.875 GHz, which suits low ceiling indoor spaces and basic coverage in schools and hotels. It has an RP-TNC connector and an ABS plastic body. The quick specs list this part as a pack of 6, so please confirm the quantity.
Key Features
- Dual band dipole antenna
- 3 dBi 2.4 GHz, 5.7 dBi 5 GHz
- 360 degree omni coverage
- RP-TNC connector
- For Meraki MR53E
- Listed as pack of 6
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Product Type: Antenna
Category of Accessory: Antennas
Compatibility Specs: Cisco Meraki MR53E
Packaged Quantity: 6
Color Category: White
Network and Communication
Antenna Gain: 3 dBi (for 2.4 GHz), 5.7 dBi (for 5 GHz)
Antenna Placement: Indoor
Frequency Range: 2.4 - 2.5 GHz, 5.15 - 5.875 GHz
Signaling Type: Wi-Fi
Directivity: Omni-directional
Connectivity
Connector Provided: 1 x RP-TNC
Technical Information
Antenna Form Type: Dipole
Horizontal Beamwidth: 360°
Vertical Beamwidth: 40°
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 3.5 inch
Width: 0.6 inch
Weight: 0.71 ounce
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
