Product Information

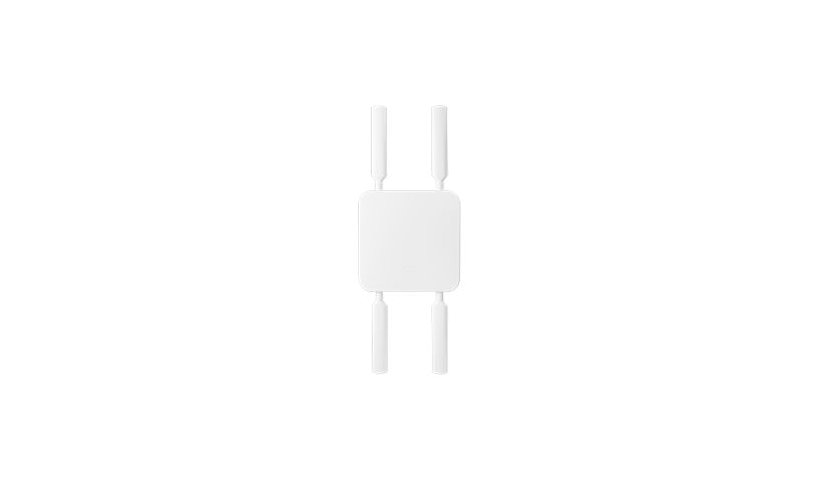

The Cisco Meraki MG52E is a cloud managed 5G and LTE CAT20 cellular gateway that delivers WAN connectivity over two 2.5GbE PoE+ ports. It supports up to 2 Gbps in passthrough mode, dual SIM with auto failover, eSIM and zero touch provisioning through the Meraki Dashboard. It mounts on a wall, ceiling or pole; the power adapter or injector is not included.
Key Features
- 5G and LTE CAT20, up to 2 Gbps passthrough download
- 2 x 2.5GBase-T PoE+ RJ-45
- 2 x SIM, auto SIM failover, eSIM
- Meraki Dashboard, zero touch provisioning, API
- 4 external dipole antennas, mounting plate
- Power adapter / injector not included
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MG52E
Product Type: Gateway
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPv4, IPv6
Data Transfer Rate: 2 GBps
Wireless LAN: LTE
Cellular Data Connectivity Technology: 5G, LTE CAT20
Mobile Broadband Access: Yes
Network Device: Maximum wireless data rate NAT (download): 1.5 Gbps, Maximum wireless data rate NAT (upload): 300 Mbps, Maximum wireless data rate passthrough (download): 2 Gbps, Maximum wireless data rate passthrough (upload): 300 Mbps
Antennas: 4
Antenna Form Factor: External
Directivity: Omni-directional
Features: API support, Auto SIM failover, E-mail notification, eSIM support, Firmware upgradable, IP passthrough, Manageable, Push notification, SD-WAN support, Zero-touch provisioning (ZTP)
Software Type: Meraki Dashboard
Connectivity
Interface Provided: 2 x 2.5 GBase-T (PoE+) - RJ-45
Expansion Slots: 2 (total) / 2 (free) x SIM card
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter / power injector (not included)
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 1,663,492 Year
Physical Characteristics
Form Factor: Wall / ceiling / pole mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.4 inch
Width: 6.8 inch
Depth: 6.8 inch
Weight: 25.29 ounce
Included Items
Included Accessories: 4 x dipole antennas, Mounting plate
Certifications and Listing
Compliant Standards #2: FCC, GCF, IC, IP67, PTCRB, RCM
Compliant Standards: IEEE 802.3at
Compliant Standards: FCC, GCF, IC, IP67, PTCRB, RCM
Warranty
Service Activation: No
