Product Information

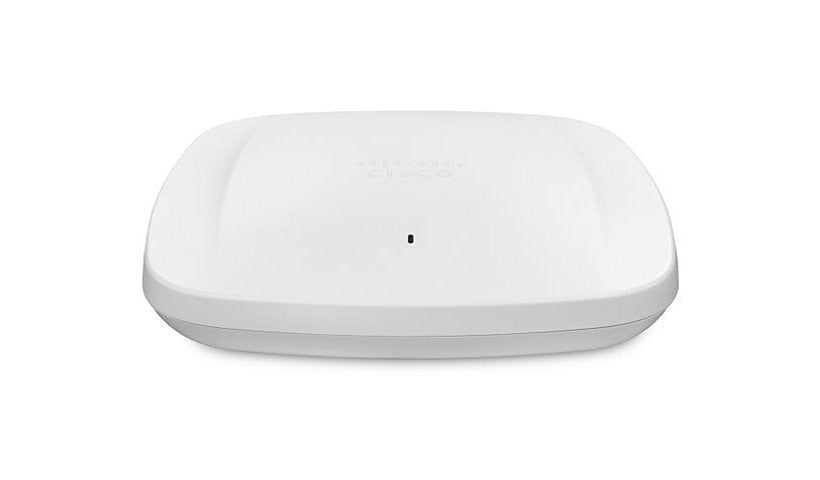

The Cisco Meraki MR57 is a cloud managed Wi-Fi 6E access point with 4x4:4 MU-MIMO on three bands and a listed data rate of up to 8.35 Gbps. It has two 5G multi-gig PoE+ ports, BLE beaconing, guest access and full time location tracking. A mounting kit is included.
Key Features
- Wi-Fi 6E tri-band: 2.4, 5, 6 GHz
- 4x4:4 MU-MIMO
- 2 x 1/2.5/5G RJ-45 (PoE+)
- BLE beaconing, USB 2.0
- Meraki cloud managed
- Mounting kit included
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MR57
Product Type: Wireless access point
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Authentication Method: Extensible Authentication Protocol (EAP), MS-CHAP v.2
Encryption: AES, EAP-SIM, EAP-TLS, EAP-TTLS, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3-Enhanced Open, WPA3-Enterprise, WPA3-Personal
Data Transfer Rate: 8.35 GBps
Wireless LAN: 802.11a/b/g/n/ac Wave 2/ax (Wi-Fi 6E)
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Maximum data rate (2.4 GHz): 1147 Mbps, Maximum data rate (5 GHz): 2402 Mbps, Maximum data rate (6 GHz): 4804 Mbps
Antenna Form Factor: Internal
Features: 4x4:4 streams, Bluetooth Low Energy Beaconing, BSS Coloring, Ceiling mountable, DiffServ Code Point (DSCP) support, Firmware upgradable, Guest access, Maximum Ratio Combining (MRC), MU-MIMO technology, Orthogonal Frequency Division Multiple Access (OFDMA), Packet aggregation, Quality of Service (QoS), Security slot (Kensington security lock compatible), SU-MIMO technology, Target Wait Time (TWT), Transmit Beamforming, Unscheduled Automatic Power Save Delivery (U-APSD), Wall mountable, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Connectivity
Interface Provided: 1 x USB 2.0 - Type A, 2 x 1/2.5/5GBase-T (PoE+) - RJ-45
Power Over Ethernet (PoE): PoE+
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
MTBF: 998,440 hour(s)
Physical Characteristics
Form Factor: External
Status Indicators: Boot state, Power, Status
Dimensions and Weight
Height: 2.2 inch
Width: 10.2 inch
Depth: 10.2 inch
Weight: 3.75 lbs
Included Items
Included Accessories: Mounting kit
Certifications and Listing
Compliant Standards: AS/NZS 2772, AS/NZS 4268, CB 60950, CB 62368, CISPR 22, CSA, EN 300 328, EN 301 489-1-17, EN 301 893, EN 50385, EN 55032, EN 62311, EN 62479, EN55024, FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, FCC Part 2, ICES-003, NCC LP0002, NOM-208, RoHS, RSS-247, UL 2043, VCCI
Compliant Standards: IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at, Wi-Fi CERTIFIED 6E
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - replacement - lifetime
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
