Product Information

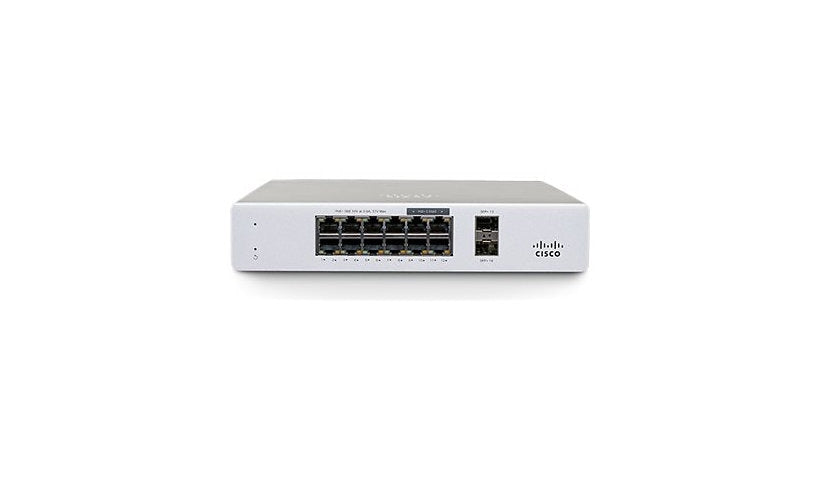

Cisco's Meraki MS130-12X is a compact, fanless cloud-managed switch with eight Gigabit PoE+ ports, four 2.5GbE PoE+ ports and two 10G SFP+ uplinks. It shares a 240 W PoE budget and offers 76 Gbps of switching capacity.
Key Features
- 8 x 1GbE RJ-45 PoE+ ports
- 4 x 2.5GbE RJ-45 PoE+ ports
- 2 x 10G SFP+ uplinks
- 240 W PoE budget
- Cloud managed, zero-touch provisioning
- Fanless, desktop or wall mount
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MS130-12X
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, IPv4, IPv6, SNMP, Syslog
Performance: Switching capacity: 76 Gbps
Features: 802.1x authentication, Cloud managed, DHCP relay, DHCP snooping, Fanless, Non-blocking architecture, Quality of Service (QoS), Remote firmware upgrade, Zero-touch provisioning (ZTP)
Connectivity
Ports: 12
Port Quantity: 8
Port Type: 10/100/1000Base-T
Ports (2nd) Quantity: 4
Ports Type (2nd): 2.5GBase-T
Ports (3rd) Quantity: 2
Interface Provided: 2 x 10GBase-X SFP+ uplink, 4 x 2.5GBase-T RJ-45 PoE+ - 30 W, 8 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE++
QSFP Slots: 10Gb Ethernet SFP+
Power
Device Type: External power adapter
Required Voltage: DC 54 volt
PoE Budget: 240 watt
Electric Current Required: 5.56 A
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 9.1 inch
Weight: 2.34 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: next business day, Technical support - 1 year
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
