Product Information

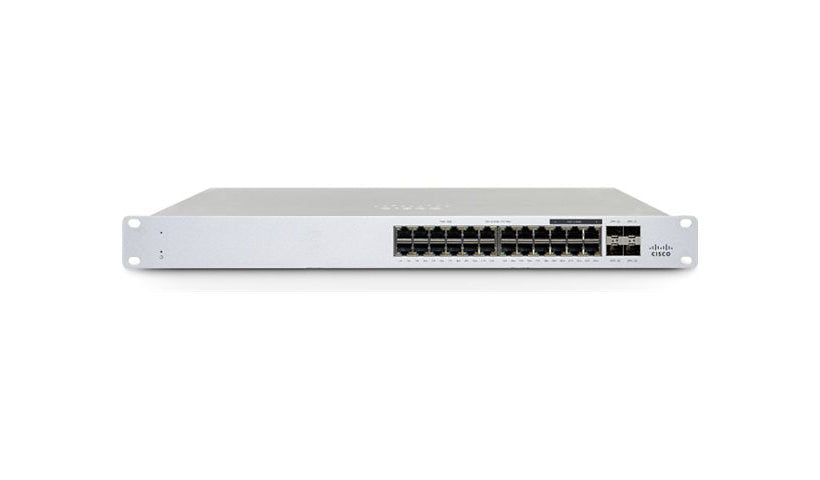

Cisco's Meraki MS130-24 is a fanless cloud-managed switch with 24 Gigabit RJ-45 ports and four Gigabit SFP uplinks. It supports zero-touch provisioning, QoS and 802.1x through the Meraki dashboard.
Key Features
- 24 x 10/100/1000 RJ-45 ports
- 4 x Gigabit SFP ports
- 56 Gbps switching capacity
- Cloud managed, zero-touch provisioning
- Fanless, rack mount
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MS130-24
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, IPv4, IPv6, SNMP, Syslog
Performance: Switching capacity: 56 Gbps
Features: 802.1x authentication, Cloud managed, DHCP relay, DHCP snooping, Fanless, Non-blocking architecture, Quality of Service (QoS), Remote firmware upgrade, Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000Base-T
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x management (Gigabit LAN) RJ-45, 24 x 1000Base-T RJ-45, 4 x 1000Base-X SFP
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Electric Current Required: 1.5 A
Standby Power Consumption: 15 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 789,842 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power, Status
Dimensions and Weight
Height: 1 inch
Width: 17.3 inch
Depth: 17.3 inch
Weight: 7.19 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: next business day, Technical support - 1 year
