Product Information

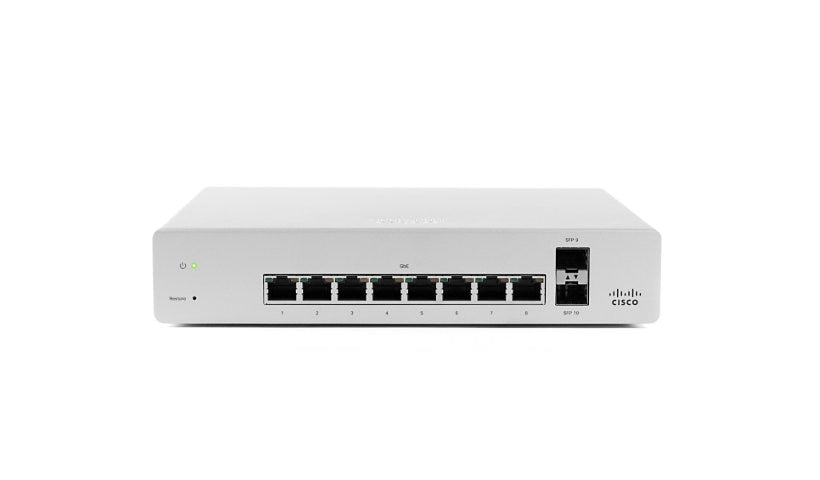

Cisco's Meraki MS130-8P-I is a fanless cloud-managed switch with eight Gigabit PoE ports and two Gigabit SFP uplinks, with an internal power supply. It shares a 120 W PoE budget and supports zero-touch provisioning, VLANs, QoS and 802.1x.
Key Features
- 8 x Gigabit RJ-45 PoE ports
- 2 x Gigabit SFP uplinks
- 120 W PoE budget
- Cloud managed, zero-touch provisioning
- Fanless, internal power supply
- Desktop or wall mount
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MS130-8P-I
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, IPv4, IPv6, SNMP, Syslog
Performance: Switching capacity: 20 Gbps
Features: 802.1x authentication, Cloud managed, DHCP relay, DHCP snooping, Fanless, Non-blocking architecture, Quality of Service (QoS), Remote firmware upgrade, VLAN Tagging, Zero-touch provisioning (ZTP)
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000Base-T
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE++ - 30 W
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 120 watt
Standby Power Consumption: 8 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 608,122 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 9.1 inch
Depth: 9.1 inch
Weight: 2.87 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - advance hardware replacement - lifetime - response time: next business day, Technical support - 1 year
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
