Product Information

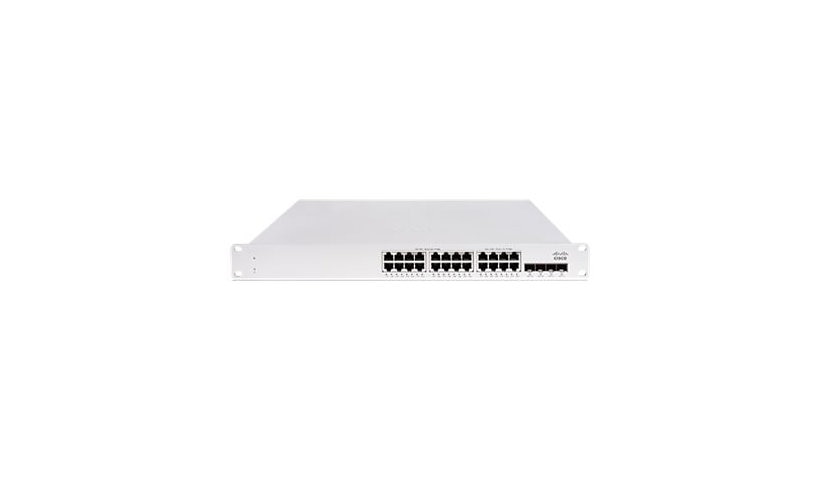

Cisco's Meraki MS150-24P-4G is a stackable cloud-managed switch with 24 Gigabit PoE+ ports and four Gigabit SFP uplinks. It provides a 370 W PoE budget, 80 Gbps of stacking bandwidth and features such as static routing, ACLs, DHCP snooping and dynamic ARP inspection.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W each
- 4 x Gigabit SFP uplinks
- 370 W PoE budget
- Stackable, 80 Gbps stacking bandwidth
- Cloud managed, static routing, ACL, DAI
- Rack mount
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki MS150
Model: 24P-4G
Product Type: Switch
Subcategory: Network hubs and switches
Compatibility Specs: P/N: MA-CBL-100G-1M, MA-CBL-100G-3M, MA-CBL-100G-50CM, MA-SFP-10GB-ER, MA-SFP-10GB-LR, MA-SFP-10GB-SR, MA-SFP-10GB-ZR, MA-SFP-1GB-LX10, MA-SFP-1GB-SX, MA-SFP-1GB-TX
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: SNMP, Syslog
Performance: Stacking bandwidth: 80 Gbps, Switching capacity: 56 Gbps
Stackable: Stackable
Features: ACL support, Adaptive policy, Auto firmware update, Broadcast Storm Control, Cloud managed, DHCP snooping, Dynamic ARP Inspection (DAI), Static routing, VLAN Tagging
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x management, 2 x network stack device, 24 x 1000Base-T RJ-45 PoE+ - 30 W, 4 x 1000Base-X SFP uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
PoE Budget: 370 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 1,573,015 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power, Status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 19 inch
Depth: 9.8 inch
Weight: 7.94 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
