Product Information

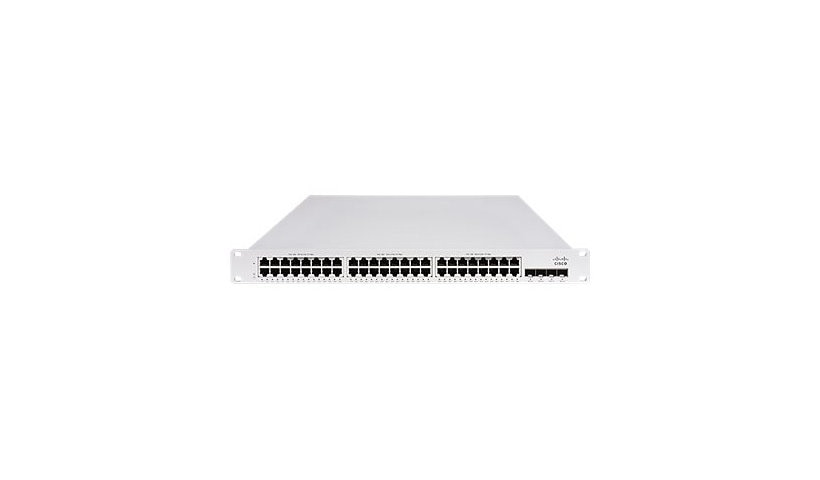

Cisco's Meraki MS150-48MP-4X is a stackable cloud-managed switch with 32 Gigabit PoE+ ports, 16 ports at up to 5G with PoE++ (60 W), and four 10G SFP+ uplinks. It shares a 740 W PoE budget and offers 304 Gbps of switching capacity and 80 Gbps of stacking bandwidth.
Key Features
- 32 x 1GbE RJ-45 PoE+ ports
- 16 x 5GbE RJ-45 PoE++ ports (60 W)
- 4 x 10G SFP+ uplinks
- 740 W PoE budget
- Cloud managed, stackable, static routing
- Rack mount
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki MS150
Model: 48MP-4X
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 5 Gigabit Ethernet / Gigabit Ethernet
Manageable: Yes
Remote Management: SNMP, Syslog
Performance: Stacking bandwidth: 80 Gbps, Switching capacity: 304 Gbps
Stackable: Stackable
Features: ACL support, Adaptive policy, Auto firmware update, Broadcast Storm Control, Cloud managed, DHCP snooping, Dynamic ARP Inspection (DAI), Static routing, VLAN Tagging
Connectivity
Ports: 48
Port Quantity: 32
Port Type: 10/100/1000
Ports (2nd) Quantity: 16
Ports Type (2nd): 5GBase-T
Ports (3rd) Quantity: 4
Interface Provided: 1 x management, 16 x 5GBase-T RJ-45 PoE++ - 60 W, 2 x network stack device, 32 x 1000Base-T RJ-45 PoE+, 4 x 10GBase-X SFP+ uplink
Power Over Ethernet (PoE): PoE++
QSFP Slots: 10Gb Ethernet SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
PoE Budget: 740 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95%
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 907,506 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power, Status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 19 inch
Depth: 13.4 inch
Weight: 12.59 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
