Product Information

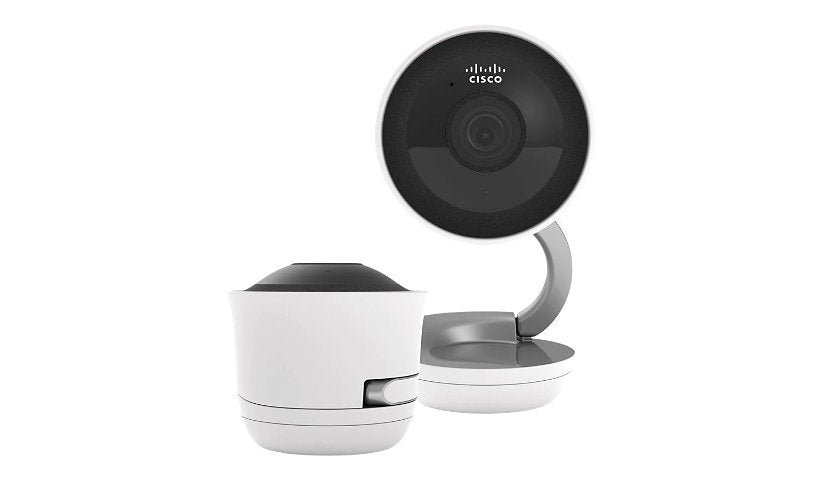

The Cisco Meraki MV2 is a compact cloud managed indoor camera with a 4 MP sensor (2688 x 1520) recording 1080p at 15 fps through a 2.8 mm lens with a 103 degree view. It has Wi-Fi, Bluetooth LE, a built in mic, IR up to 26 ft and object detection with people tracking, and connects by USB-C or PoE. Magnetic base plate and wall mount kit included.
Key Features
- 4 MP sensor, 1080p
- 103 degree view
- Wi-Fi and Bluetooth LE
- Built in mic, IR 26 ft
- Object detection
- Magnetic base, wall kit
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV2
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Encryption: 256-bit AES, EAP-TTLS, TKIP, TLS, WPA, WPA2-Enterprise, WPA2-PSK
IoT Communications Type: Cloud
Internet of Things (IoT) Compatible: Yes
Features: 802.1x authentication, Bluetooth Low Energy (BLE) technology, Integrated omnidirectional antennas, LED Indicator, MU-MIMO support, Object classification, Object Detection, People Tracking, Reset button, Role-based user accounts, Secure Boot, Signed firmware, Two-factor authentication, Up to 256 QAM
Connectivity
Network Interface: 2.4GHz radio, Bluetooth LE, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Protocols: DSCP
Ports: USB-C - 24-pin USB-C
Technical Information
Still Image Capture Resolution: 1080p
Infrared Distance: 26 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 134
Max Focal Length: 2.8 millimetre
Video Capture: 1920 x 1080 @ 15 fps
Camera Type: Network surveillance camera
Camera Mount Type: Wall mount
Sensor Pixels Total (H): 1520
Sensor Pixels Total (V): 2688
Angular Field of View (H, Min, Degree): 103
Angular Field of View (V, Min, Degree): 76
Minimum Illumination: 0.18 lux - color - F2.0
Total Pixels: 4,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/3"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 2.8 millimetre
Sensor Size (metric): 8.5 mm (1/3")
Night Vision: Yes
Digital Video Capture Resolution: 1920 x 1080, 2688 x 1520
Max Frame Rate: 15 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 5.1 inch
Width: 3 inch
Depth: 3 inch
Weight: 16.37 ounce
Included Items
Included Accessories: Magnetic base plate, Wall mount kit
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
