Product Information

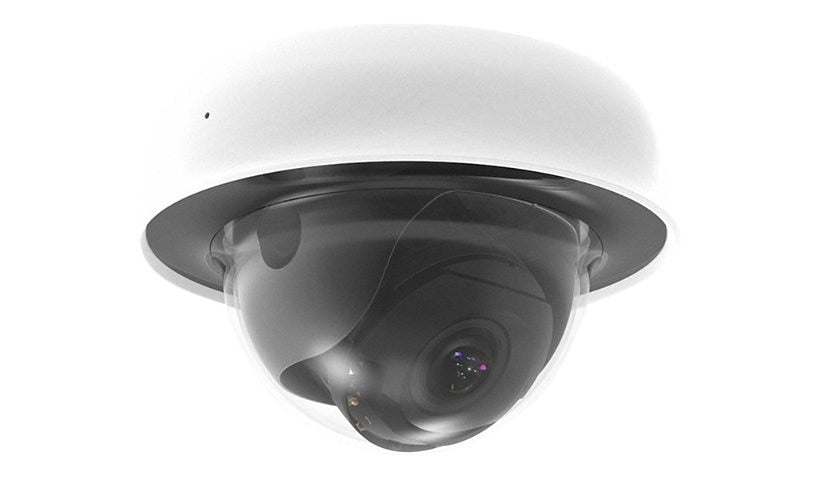

The Cisco Meraki MV22 is a cloud managed indoor dome with a 4 MP sensor recording 1080p, with a 3 to 9 mm varifocal lens (3x) covering 36 to 112 degrees. It has IR up to 98 ft, HDR, a built in mic, Wi-Fi, Bluetooth LE and motion heatmaps, and runs on PoE. Wall mount kit included.
Key Features
- 4 MP sensor, 1080p
- 3 to 9 mm varifocal
- IR up to 98 ft
- HDR, mic
- Wi-Fi, Bluetooth LE
- Wall mount kit included
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV22
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Encryption: 256-bit AES, EAP-TTLS, TKIP, TLS, WPA, WPA2-Enterprise, WPA2-PSK
IoT Communications Type: Cloud
Internet of Things (IoT) Compatible: Yes
Features: Bluetooth Low Energy (BLE) technology, Built-in IR illuminator, Cloud-augmented, Configurable retention days, High Dynamic Range (HDR), Integrated omnidirectional antennas, LED Indicator, Management encryption, Motion Heatmaps, Motion Recap, Motion Search, MU-MIMO support, Person Detection, Reset button, Secure Boot, Signed firmware, Two-factor authentication, Up to 256 QAM
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Protocols: DSCP
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 256 GB
Technical Information
Still Image Capture Resolution: 1080p
Angular Field of View (D, Max, Degree): 138
Angular Field of View (H, Max, Degree): 112
Angular Field of View (V, Max, Degree): 57
Infrared Distance: 98 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 42
Max Focal Length: 9 millimetre
Optical Zoom: 3
Tilt: 65
Motion Detection: Yes
Panning Range (degree): 354
Angular Field of View (H, Min, Degree): 36
Angular Field of View (V, Min, Degree): 20
Minimum Illumination: 0.01 lux - B&W - F2.3, 0.18 lux - color - F2.3
Total Pixels: 4,000,000 pixels
Video Modes: 1080p
Image Sensor Size: 1/3"
Image Sensor Type: CMOS
Lens Aperture: F/1.2-2.3
Min Focal Length: 3 millimetre
Sensor Size (metric): 8.5 mm (1/3")
Digital Video Capture Resolution: 1920 x 1080, 2688 x 1520
Max Frame Rate: 20 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 2688 x 1520
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.8 inch
Width: 5.9 inch
Depth: 5.9 inch
Weight: 24.9 ounce
Included Items
Included Accessories: Wall mount kit
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
