Product Information

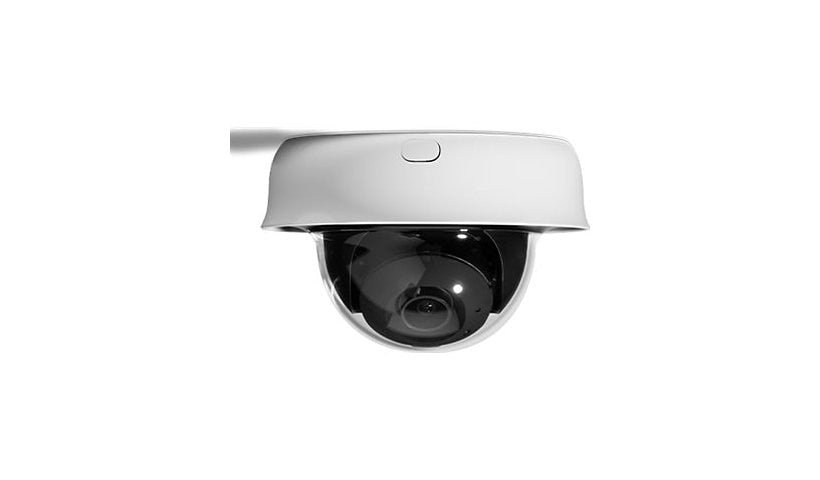

The Cisco Meraki MV23M is a cloud managed indoor dome with 512 GB onboard (listed for 60 days), recording up to 4K at 15 fps or 1440p at 24 fps through a 3 to 9 mm varifocal lens. It has IR up to 98 ft, HDR, four mics, object detection and AI search, and connects by Gigabit or Wi-Fi with 12 V DC or PoE.
Key Features
- 4K at 15 fps, 1440p at 24
- 512 GB onboard storage
- 3 to 9 mm varifocal
- IR up to 98 ft, HDR
- Four mics, object detection
- Gigabit or Wi-Fi
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV23M
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Encryption: 256-bit AES, EAP-TTLS, TKIP, TLS, WPA, WPA2-Enterprise, WPA2-PSK
IoT Communications Type: Cloud
Internet of Things (IoT) Compatible: Yes
Features: 60 days of storage, 802.1x authentication, AI-powered search, Cloud-augmented, High Dynamic Range (HDR), Integrated omnidirectional antennas, LED Indicator, Management encryption, Motion Heatmaps, Motion Recap, Motion Search, Night Vision, Object Detection, Reset button, Role-based user accounts, Secure Boot, Signed firmware, Smart Codec, Two-factor authentication
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Protocols: DSCP
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 512 GB
Technical Information
Angular Field of View (H, Max, Degree): 112
Infrared Distance: 98 ft
Infrared LEDs: Yes
Max Focal Length: 9 millimetre
Video Capture: 1920 x 1080 @ 24 fps, 2560 x 1440 @ 24 fps, 3840 x 2160 @ 15 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 36
Total Pixels: 8,410,000 pixels
Video Modes: 1080p, 1440p, 4K
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.6-2.9
Min Focal Length: 3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080, 2560 x 1440, 3840 x 2160
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in four microphones
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Indoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.8 inch
Width: 5.8 inch
Depth: 5.8 inch
Weight: 29.63 ounce
Included Items
Included Accessories: Wall mount kit
