Product Information

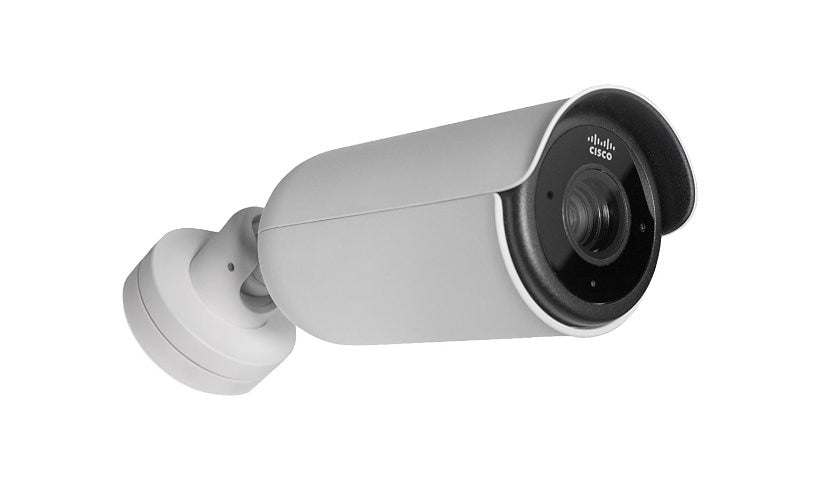

The Cisco Meraki MV53X is a cloud managed outdoor 4K bullet camera with a 12.5 to 38 mm varifocal lens (3x) for longer views, recording 4K at 15 fps or 1440p at 24 fps. It has 1 TB onboard, IR up to 164 ft, HDR, a mic and object detection with line crossing, and runs on PoE+. Vandal and weatherproof, -40 to 50 C.
Key Features
- 4K at 15 fps, 1440p at 24
- 12.5 to 38 mm, 3x
- 1 TB onboard storage
- IR up to 164 ft, HDR
- Object detection
- PoE+, -40 to 50 C
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV53X
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Connectivity Technology: Wired
Encryption: 256-bit AES, TLS
Features: AI-powered, Area occupancy, Cloud recording, Cloud-augmented, Day/night switch, High Dynamic Range (HDR), Intelligent Object Detection (IOD), LED Indicator, Line-crossing detection, Live Streaming, Management encryption, Microphone mute control, Motion Heatmaps, Motion Recap, Motion Search, Object Detection, People counting, Privacy mode, Reset button, Role-based user accounts, Secure Boot, Signed firmware, SmartCodec technology, Two-factor authentication
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols: DSCP
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE Plus
Power Consumption Operational: 30 watt
Memory and Processor
Flash Memory Installed: 1 TB
Technical Information
Angular Field of View (H, Max, Degree): 37
Infrared Distance: 164 ft
Infrared LEDs: Yes
Max Focal Length: 38 millimetre
Optical Zoom: 3
Video Capture: 1920 x 1080 @ 24 fps, 2560 x 1440 @ 24 fps, 3840 x 2160 @ 15 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 12
Total Pixels: 8,410,000 pixels
Video Modes: 4K
Lens Aperture: F/2.05-2.2
Min Focal Length: 12.5 millimetre
Digital Video Capture Resolution: 1920 x 1080, 2560 x 1440, 3840 x 2160
Max Frame Rate: 24 frames per second
Focal Length Control: Vari-focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Vandal / weatherproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Included Items
Included Accessories: Wall mount kit
