Product Information

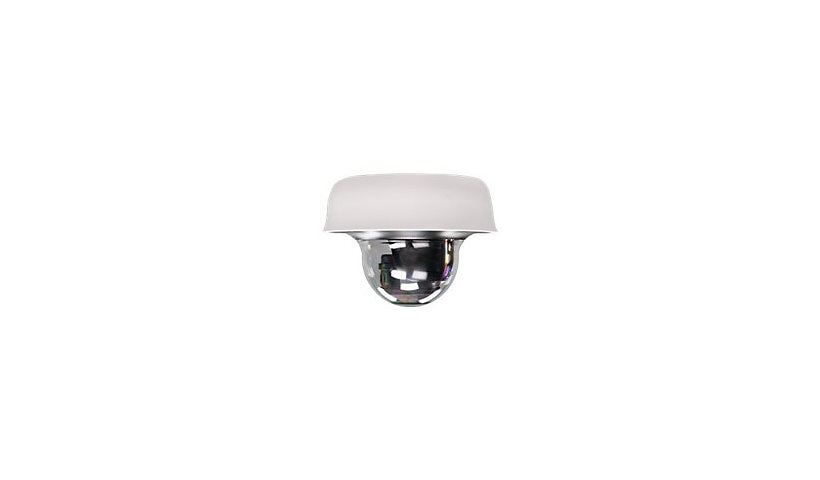

The Cisco Meraki MV63X is a cloud managed outdoor mini dome recording up to 3840 x 2160 (15 fps at 4K, 24 fps at 1440p) through a 3.3 mm F2.0 lens. It has IR up to 66 ft, three mics, HDR, a heater, Wi-Fi, attribute search and motion heatmaps, and runs on PoE+. Wall mount kit included.
Key Features
- 4K, cloud managed
- 3.3 mm fixed lens
- IR up to 66 ft
- Three mics, Wi-Fi
- HDR, heater
- Wall mount kit included
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV63X
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Encryption: AES, EAP-TTLS, TKIP, WPA, WPA2-Enterprise, WPA2-PSK
IoT Communications Type: Cloud
Internet of Things (IoT) Compatible: Yes
Features: Attribute search, Audio recording, Heater, High Dynamic Range (HDR), Integrated omnidirectional antennas, LED Indicator, Management encryption, Motion Heatmaps, Motion Recap, Motion Search, Night Vision, Object Detection, Reset button, Role-based user accounts, Secure Boot, Signed firmware, Smart Codec, Two-factor authentication, Up to 256 QAM
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Protocols: DSCP
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 1 TB
Technical Information
Infrared Distance: 66 ft
Infrared LEDs: Yes
Video Capture: 1920 x 1080 @ 24 fps, 2560 x 1440 @ 24 fps, 3840 x 2160 @ 15 fps
Motion Detection: Yes
Total Pixels: 8,410,000 pixels
Video Modes: 1080p, 4K
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Lens Aperture: F/2.0
Min Focal Length: 3.3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080, 2560 x 1440, 3840 x 2160
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Fixed focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in three microphones
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 3.7 inch
Width: 5.2 inch
Depth: 5.2 inch
Weight: 32.45 ounce
Included Items
Included Accessories: Wall mount kit
