Product Information

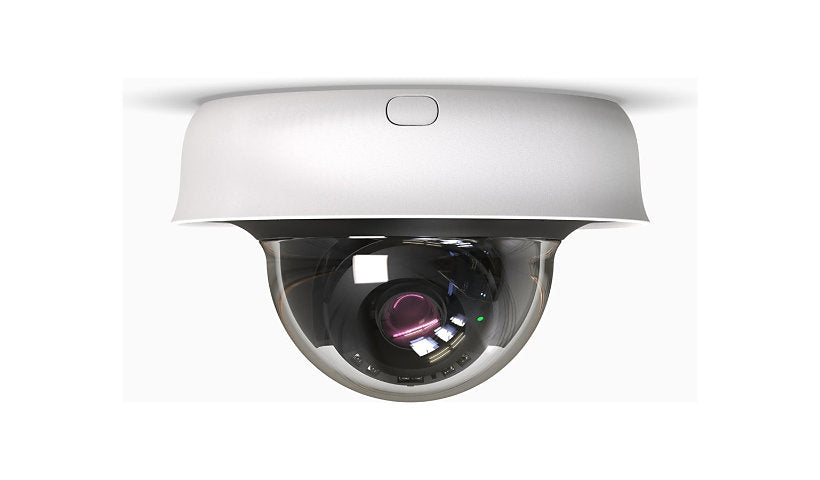

The Cisco Meraki MV73X is a cloud managed outdoor dome camera with 1 TB onboard, recording up to 4K at 15 fps or 1440p at 24 fps through a 3 to 9 mm varifocal lens. It has IR up to 98 ft, HDR, four mics, a heater and object detection, connects by Gigabit or Wi-Fi with WPA3 and runs on 12 V DC or PoE. IP67 rated for -40 to 50 C.
Key Features
- 4K at 15 fps, 1440p at 24
- 1 TB onboard storage
- 3 to 9 mm varifocal
- IR up to 98 ft, HDR
- Gigabit or Wi-Fi, 12 V or PoE
- IP67, -40 to 50 C
Product Information
Brand: Cisco Meraki
Manufacturer: Meraki
Product Line: Cisco Meraki
Model: MV73X
Packaged Quantity: 1
Color Category: Black, White
Network and Communication
Wi-Fi: Yes
Connectivity Technology: Wired, Wireless
Encryption: 256-bit AES, EAP-TTLS, TKIP, TLS, WPA, WPA2-Enterprise, WPA2-PSK, WPA3-Personal
IoT Communications Type: Cloud
Internet of Things (IoT) Compatible: Yes
Features: Attribute search, Cloud-augmented, Heater, High Dynamic Range (HDR), Integrated omnidirectional antennas, LED Indicator, Live Streaming, Motion Heatmaps, Motion Recap, Motion Search, Object classification, Object Detection, People Detection, Reset button, Secure Boot, Signed firmware, Smart Codec, Up to 256 QAM, Vehicle Detection
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Protocols: DSCP
Ports: LAN/power - RJ-45
Memory and Processor
Flash Memory Installed: 1 TB
Technical Information
Angular Field of View (H, Max, Degree): 112
Infrared Distance: 98 ft
Infrared LEDs: Yes
Max Focal Length: 9 millimetre
Optical Zoom: 3
Video Capture: 1920 x 1080 @ 24 fps, 2560 x 1440 @ 24 fps, 3840 x 2160 @ 15 fps
Motion Detection: Yes
Angular Field of View (H, Min, Degree): 36
Total Pixels: 8,410,000 pixels
Video Modes: 1080p, 4K
Image Sensor Size: 1/2.8"
Image Sensor Type: Progressive Scan CMOS
Lens Aperture: F/1.6-2.9
Min Focal Length: 3 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 1920 x 1080, 2560 x 1440, 3840 x 2160
Max Frame Rate: 24 frames per second
Shutter Speed (Max): 1/32000 second (time unit)
Shutter Speed (Min): 1/30 second (time unit)
Focal Length Control: Vari-focal
Video Formats: H.264
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in four microphones
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 6.6 inch
Depth: 6.6 inch
Weight: 3.26 lbs
Included Items
Included Accessories: Wall mount kit
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
